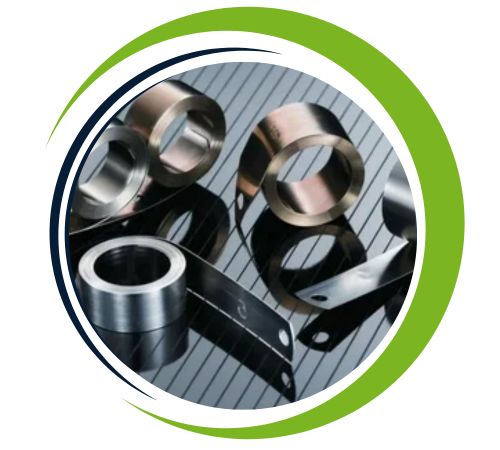

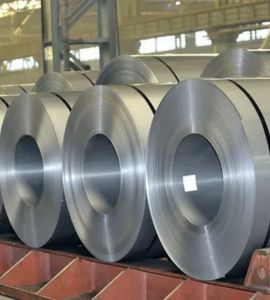

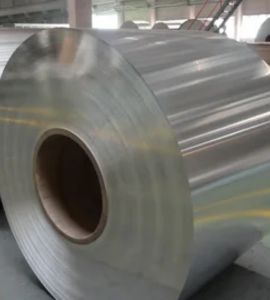

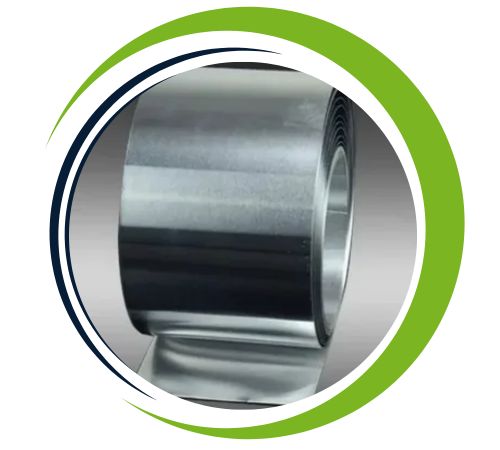

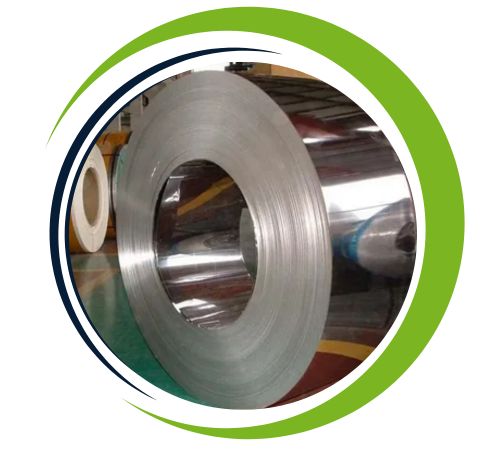

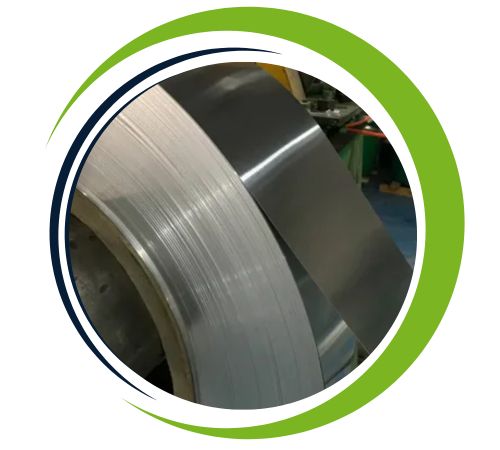

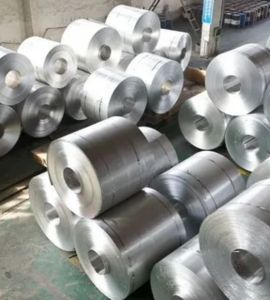

Wiraphan Sheets and Plates, a reputable manufacturer and supplier located in Bangkok, Thailand, specializes in providing top-notch Inconel 600 Foils tailored for demanding industrial, chemical, and aerospace applications. Crafted with precision and a commitment to international standards, these foils boast outstanding corrosion resistance, oxidation resistance, and mechanical strength even at high temperatures. The Inconel 600 Foils from Wiraphan are commonly utilized in environments that experience extreme heat, thermal cycling, and corrosive conditions. With a strong emphasis on timely delivery, competitive pricing, and exceptional customer support, the company guarantees a dependable supply for both local and international clients.
The composition of Inconel 600 Foils primarily includes nickel (at least 72%), chromium (14–17%), and iron (the remainder), along with trace amounts of manganese, silicon, and carbon. This unique blend offers remarkable resistance to oxidation, high-temperature corrosion, and stress corrosion cracking, while also ensuring good tensile strength and ductility. On a mechanical level, these foils deliver high fatigue resistance, toughness, and dimensional stability, making them perfect for precision fabrication, forming, and high-stress applications.
| Grades | Nickel 200, Nickel 201, Monel 400, Monel K500, Inconel 600, Inconel 601, Inconel 625, Inconel 718, Incoloy 800 / 800H / 800HT, Incoloy 825, Hastelloy C22, Hastelloy C276, Hastelloy B2, Hastelloy B3, Hastelloy X |
| Thickness | 0.02mm -6mm |
| Width | 4mm -40mm |
| Length | AS PER CUSTOMER’S REQUIREMENT |
| Type of Material | HIGH NICKEL ALLOY SOFT, DEEP DRAW, EXTRA DEEP DRAW, QUARTER HARD, HALF HARD, FULL HARD. |
| Finish | NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |
| Make | JINDAL STAINLESS STEEL, BAHRU, POSCO KOREA, POSCO THAINOX, COLUMBUS, ACERINOX, APERAM, TISCO, NISSHIN, NIPPON AND MANY MORE MILLS. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.47 g/cm3 | 1413 °C (2580 °F) | 655 MPa, 95000 psi | 310 MPa, 45000 psi | 45 % |
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Inconel 600 | N06600 | 2.4816 | NC15FE11M | NiCr15Fe | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | ЭИ868 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Wiraphan Sheets and Plates based in Bangkok, Thailand, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 600 Foils find extensive use across various sectors, including chemical processing, aerospace, power generation, and marine industries. They are particularly well-suited for manufacturing components like heat exchangers, furnace parts, gaskets, turbine components, and other critical equipment that must withstand high temperatures and corrosive environments. Moreover, these foils are utilized in industrial ovens, chemical reactors, and other high-temperature machinery where durability, mechanical reliability, and corrosion resistance are crucial. The combination of high-temperature performance, strength, and corrosion resistance makes Inconel 600 Foils a top choice for advanced industrial and engineering applications.
Yes, we offer custom sizes for Inconel 600 Foils to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.
| Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
| 3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
| 4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
| 5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
| 6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
| 8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
| 10 | 78.5 | 94 | 118 | 141 | 188 |
| 12 | 94.2 | 113 | 141 | 170 | 226 |
| 16 | 125.6 | 151 | 188 | 226 | 301 |
| 20 | 157 | 188 | 236 | 283 | 377 |
| 22 | 172.7 | 207 | 259 | 311 | 415 |
| 25 | 196.25 | 236 | 294 | 353 | 471 |
| 28 | 219.8 | 264 | 330 | 396 | 528 |
| 32 | 251.2 | 301 | 377 | 452 | 603 |
| 36 | 282.6 | 339 | 424 | 509 | 678 |
| 40 | 314 | 377 | 471 | 565 | 754 |
| 45 | 353.25 | 424 | 530 | 636 | 848 |
| 50 | 392.5 | 471 | 589 | 707 | 942 |
| 55 | 431.75 | 518 | 648 | 777 | 1036 |
| 60 | 471 | 565 | 707 | 848 | 1130 |
| 65 | 510 | 612 | 765 | 918 | 1224 |
| 70 | 549.5 | 659 | 824 | 989 | 1319 |
| 75 | 588.75 | 707 | 883 | 1060 | 1413 |
| 80 | 628 | 754 | 942 | 1130 | 1507 |
| 90 | 706.5 | 848 | 1060 | 1272 | 1696 |
| 100 | 785 | 942 | 1178 | 1413 | 1884 |
Inconel 600 foils are widely used in industries requiring high-temperature and corrosion-resistant materials. Common applications include aerospace components such as turbine blades and exhaust systems, as well as chemical processing equipment, heat exchangers, and furnace parts. They are also used in marine environments, particularly for parts exposed to seawater. Inconel 600 foils are ideal for applications in nuclear reactors, pollution control equipment, and food processing, where both thermal stability and resistance to oxidation and corrosion are critical for performance and longevity.
