Wiraphan Sheets and Plates, a top-notch manufacturer and supplier located in Bangkok, Thailand, specializes in providing high-quality Inconel Sheets and Plates designed for demanding industrial, aerospace, and chemical applications. Crafted with precision and adhering to international standards, these sheets and plates boast remarkable resistance to heat, corrosion, and oxidation. You’ll find Inconel Sheets and Plates from Wiraphan being utilized in environments that face extreme temperatures, acidic or alkaline conditions, and significant mechanical stress. With a commitment to timely delivery, competitive pricing, and outstanding customer support, the company guarantees a dependable supply for both local and international clients.
The composition of Inconel Sheets and Plates primarily includes nickel (50–72%), chromium (14–23%), along with trace amounts of iron, molybdenum, and other elements depending on the specific grade (like Inconel 600, 625, or 718). This unique blend allows them to retain impressive mechanical strength and corrosion resistance, even when exposed to high temperatures. On a mechanical level, Inconel Sheets and Plates deliver high tensile strength, toughness, and creep resistance, making them perfect for high-stress, high-temperature applications.
Specifications :ASTM B168, ASME SB168, AMS 4544, QQ-N-281, DIN 17750, BS 3072NA1, BS 3076NA13
Standards : ASTM, ASME and API
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Length : 12500 mm

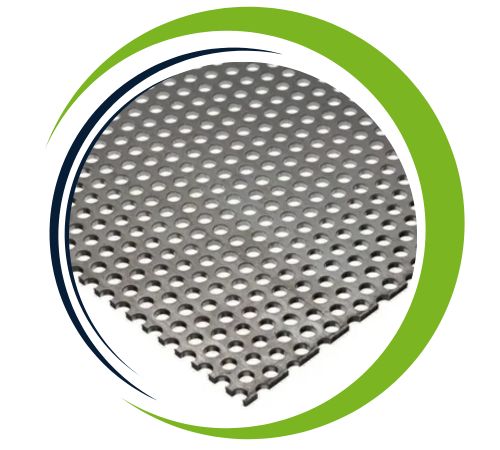

Form : Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray Etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Plate, Sheet, and Strip : BS3072NA18 (Sheet and Plate), BS3073NA18 (Strip), QQ-N-286 (Plate, Sheet and Strip), DIN 17750 (Plate, Sheet and Strip), ISO 6208 (Plate, Sheet and Strip)
| Density | 8.4 g/cm³ | 8.1g/cm³ | 8.4 g/cm³ | 8.2 g/cm³ |
| Melting Range,℃ | 1370-1425 ℃ | 1320-1370℃ | 1290-1350℃ | 1260-1340 ℃ |
| Elongation % | 30min. | 30 min. | 30 min. | 30 min. |
| Tensile strength – Mpa | 550min. | 650min. | 760min. | 965min |
| Yield strength – Mpa | 240min. | 300min. | 345min. | 550 min. |
| Brinell hardness (HB) | ≤195 | ≤220 | ≤220 | ≤363 |
| Alloy 600 | Inconel 600 | N06600 | 2.4816 | 8.42 |
| Alloy 601 | Inconel 601 | N06601 | 2.4851 | 8.2 |
| Alloy 625 | Inconel 625 | N06625 | 2.4856 | 8.44 |
| Alloy 718 | Inconel 718 | N07718 | 2.4668 | 8.19 |
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |
| Polished, brushed | 0.5–4.0 | max. 1524 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Wiraphan Sheets and Plates based in Bangkok, Thailand, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
These sheets and plates find extensive use across various sectors, including aerospace, power generation, chemical processing, petrochemical, and marine industries. They are particularly well-suited for crafting turbine components, heat exchangers, furnace parts, chemical vessels, and piping systems that encounter corrosive or high-temperature environments. Moreover, you’ll see these sheets and plates in action within gas turbines, nuclear reactors, and industrial furnaces, where durability, corrosion resistance, and mechanical reliability are essential. The combination of high strength, heat resistance, and corrosion resistance makes Inconel Sheets and Plates a go-to choice for advanced industrial and engineering applications.
Yes, we offer custom sizes for Inconel Sheets and Plates to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.
| Thickness | Alloy | Plate Weight per Unit Area | Density |
|---|---|---|---|
| 3/16 inches | Inconel | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | Inconel | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | Inconel | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | Inconel | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | Inconel | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | Inconel | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | Inconel | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | Inconel | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | Inconel | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | Inconel | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | Inconel | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | Inconel | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | Inconel | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | Inconel | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | Inconel | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | Inconel | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Inconel sheets and plates are widely used in industries requiring high-performance materials capable of withstanding extreme conditions. Common applications include gas turbines, heat exchangers, and aircraft engines, where resistance to high temperatures and corrosion is critical. They are also used in chemical processing, nuclear reactors, and marine environments, owing to their ability to resist oxidation and maintain strength under stress. Inconel’s versatility makes it ideal for manufacturing components like exhaust systems, pressure vessels, and heat shields, providing durability in demanding environments.
