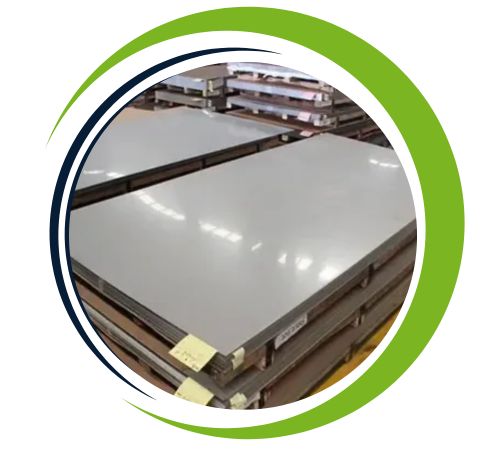

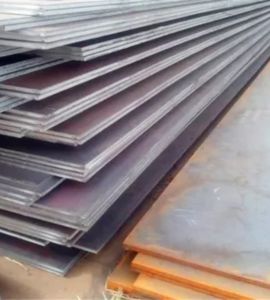

Wiraphan Sheets and Plates, a reputable manufacturer and supplier located in Bangkok, Thailand, specializes in providing top-notch Inconel 617 Sheets and Plates designed for high-temperature, industrial, and aerospace applications. Crafted with precision and a commitment to international standards, these sheets and plates offer remarkable oxidation resistance, impressive tensile strength, and mechanical stability even in extreme thermal and corrosive environments. The Inconel 617 Sheets and Plates from Wiraphan are commonly utilized in settings that experience thermal cycling, mechanical stress, and exposure to harsh chemicals. With a strong emphasis on timely delivery, competitive pricing, and exceptional customer support, the company guarantees a dependable supply for both local and international clients.
The composition of Inconel 617 Sheets and Plates primarily includes nickel (52–67%), chromium (20–23%), and cobalt (11–13%), along with molybdenum (0.5–1.5%) and iron (the remainder). This unique blend ensures outstanding resistance to high-temperature oxidation, carburization, and creep, while also maintaining excellent tensile strength, toughness, and fatigue resistance. Mechanically, these sheets and plates showcase high ductility, dimensional stability, and formability, making them ideal for high-stress, high-temperature applications in both industrial and aerospace sectors.

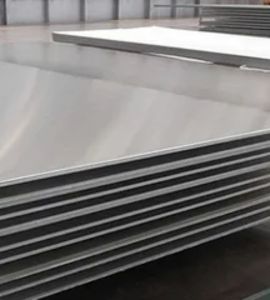

Standards : ASTM B168 / ASME SB168, SAE AMS 5888, SAE AMS 5889
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Form : Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Thickness : 0.1mm to 12 mm Thk
Length : 500mm to 12000mm
Width : 100mm to 3000mm
| Element | Yield Strength | Tensile Strength | Elongation % | Reduction of Area | Hardness, BHN | ||
| ksi | MPa | ksi | MPa | ||||
| Inconel 617 | 50.9 | 351 | 109.5 | 755 | 58 | – | 173 |
| Grade Inconel 617 | Ni | Cr | Fe | Mo | Co | Mn | Cu | Al | Ti | Si | C | S | P |
| MIN | 44.2 | 20.0 | – | 8.0 | 10.0 | – | – | 0.8 | – | – | – | – | – |
| MAX | 56.0 | 24.0 | 3.0 | 10.0 | 15.0 | 0.5 | 0.5 | 1.5 | 0.6 | 0.5 | 0.15 | 0.015 | 0.015 |
| STANDARD | UNS | WNR. |
| Alloy 617 | N06617 | 2.4663 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Wiraphan Sheets and Plates based in Bangkok, Thailand, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 617 Sheets and Plates find extensive applications in aerospace, power generation, chemical processing, and petrochemical industries. They are particularly well-suited for manufacturing components like heat exchangers, turbine parts, furnace components, flanges, and other critical equipment that must withstand extreme temperatures and corrosive conditions. Furthermore, these sheets and plates are utilized in industrial furnaces, nuclear reactors, and high-temperature processing plants where durability, mechanical strength, and corrosion resistance are crucial. The combination of high-temperature performance, mechanical reliability, and corrosion resistance makes Inconel 617 Sheets and Plates a top choice for advanced applications.
Yes, we offer custom sizes for Inconel 617 Sheets and Plates to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.
| Dimension (mm) | KG P/M2 |
| 0.5 X 1000 X 2000 | 4.5 |
| 0.7 X 1219 X 3048 | 6.3 |
| 0.9 X 1219 X 3048 | 8.1 |
| 1.2 X 1219 X 3048 | 10.8 |
| 1.6 X 1200 X 3048 | 14.4 |
| 2.0 X 1219 X 3048 | 18.0 |
| 3 X 1200 X 3000 | 27.0 |
| 3.18 X VARIOUS ANN | 28.6 |
| Thickness | Plate Weight per Unit Area | Density |
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Inconel 617 Sheets and Plates are widely used in industries requiring materials that withstand extreme conditions. Their exceptional heat and corrosion resistance make them ideal for gas turbines, jet engines, and combustion chambers in aerospace applications. In power generation, they are used in heat exchangers and furnace components due to their thermal stability. The alloy’s strength and resistance to chemical attack suit it for petrochemical processing, nuclear reactors, and marine engineering. Additionally, their versatility supports applications in industrial heating systems and chemical plants handling aggressive environments.
