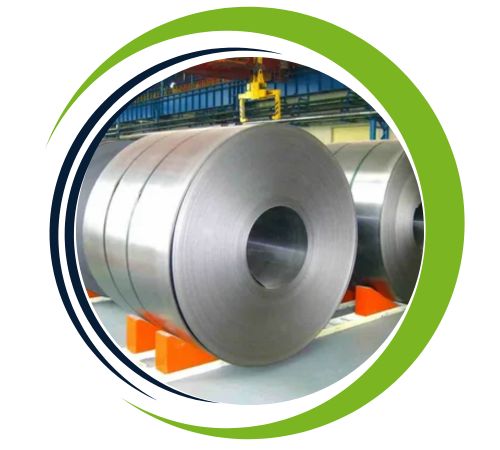

Wiraphan Sheets and Plates is a reputable Bangkok-based manufacturer and supplier of high-quality titanium products. As a company with a keen eye for innovation and precision, Wiraphan Sheets and Plates has developed a comprehensive line of titanium materials, such as Titanium Grade 5 Coil and Slitting Coil. With an exceptional strength-to-weight ratio and corrosion resistance, Titanium Grade 5 is the go-to material for challenging industrial applications. Wiraphan guarantees that every product has international quality, and it delivers trusted and effective solutions for customers in aerospace, medical, marine, and chemical processing industries in Thailand and other places.

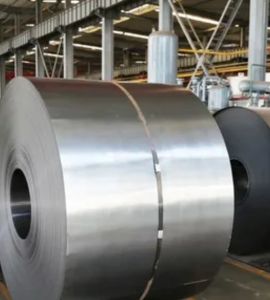

Titanium Grade 5 coils and slitting coils are known for their exceptional strength-to-weight ratio, corrosion resistance and biocompatibility This alloy is ever made with about 6% aluminum, 4% vanadium and trace elements exhibited excellent mechanical properties , with a tensile strength of 895 MPa and a yield strength of 828 MPa Offers outstanding fatigue resistance and temperatures up to 400°C. Widely used in aerospace, medical and industrial applications, Titanium Grade 5 combines lightweight performance with durability, making it a versatile material for complex surfaces that require precision and they can be relied upon.
| Standards | ASTM B265 / ASME SB265 |
| Thickness | 0.2mm – 5.0mm |
| Width | 3.2mm – 1500mm & bove |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT |
| Hardness | Annealed – pickled (soft), Soft, Hard, Half Hard, Quarter Hard, Spring Hard , 1/4 hard, Yi hard,3/4 hard , full hard , extra hard |
| Test Certificate | Chemical test, Fitting test, Alloy test, Radiography test, Macro and micro-test, Hydrostatic test, Impact test. |
| Finish | Cold rolled stainless steel strips annealed & pickled 2 B Cold rolled stainless steel strips annealed & skin passed 2R Work harden for specific hardness BA/BE/ Matt Finish Cold rolled stainless steel strips |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Ti Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr.5 | 3.7165 | R56400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Wiraphan Sheets and Plates based in Bangkok, Thailand, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| Thickness Tolerance +/- mm | ||||
| Thickness | Width | |||
| 320≤W＜600 | W＜320 | |||
| T1 | T2 | T3 | T4 | |
| T＜0.05 mm | 0.004 | 0.003 | 0.003 | 0.002 |
| 0.05≤T＜0.07 | 0.005 | 0.004 | 0.004 | 0.003 |
| 0.07≤T＜0.08 | 0.006 | 0.005 | 0.005 | 0.003 |
| 0.08≤T＜0.10 | 0.007 | 0.005 | 0.005 | 0.003 |
| 0.10≤T＜0.13 | 0.009 | 0.007 | 0.006 | 0.004 |
| 0.13≤T＜0.15 | 0.010 | 0.008 | 0.007 | 0.004 |
| 0.15≤T＜0.20 | 0.011 | 0.009 | 0.008 | 0.004 |
| 0.20≤T＜0.25 | 0.013 | 0.010 | 0.008 | 0.005 |
| 0.25≤T＜0.30 | 0.015 | 0.011 | 0.009 | 0.005 |
| 0.30≤T＜0.35 | 0.016 | 0.012 | 0.010 | 0.005 |
| 0.35≤T＜0.40 | 0.018 | 0.012 | 0.010 | 0.005 |
| 0.40≤T＜0.50 | 0.020 | 0.015 | 0.012 | 0.005 |
| 0.50≤T＜0.60 | 0.022 | 0.018 | 0.013 | 0.005 |
| 0.60≤T＜0.70 | 0.024 | 0.020 | 0.015 | 0.005 |
| 0.70≤T＜0.80 | 0.026 | 0.022 | 0.017 | 0.005 |
| 0.80≤T＜0.90 | 0.028 | 0.024 | 0.018 | 0.006 |
| 0.90≤T＜1.00 | 0.032 | 0.027 | 0.020 | 0.008 |
| 1.00≤T＜1.20 | 0.035 | 0.030 | 0.022 | 0.008 |
| 1.20≤T＜1.40 | 0.040 | 0.035 | 0.025 | 0.010 |
| 1.40≤T＜1.60 | 0.045 | 0.040 | 0.030 | 0.020 |
Titanium Grade 5 coils and slitting coils offer many benefits, including high strength to weight ratio, excellent corrosion resistance and exceptional durability They withstand harsh conditions including temperatures up to 400 degrees Celsius self without loss of performance. Biocompatibility makes them ideal for medical applications, while their light weight increases fuel efficiency in the aerospace and automotive industries. These coils also exhibit excellent fatigue and separation resistance, providing long service life. Furthermore, they are versatile, easy to machine and reusable, providing durable and reliable solutions for complex applications across a variety of industries.
Yes, we offer custom sizes for Titanium Grade 5 Coil/Slitting Coil to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.
Titanium Grade 5 coils and slitting coils are widely used in industry due to their unique properties. In aerospace they are used for aircraft parts such as engine parts and structural frames due to their high strength and lightness and in medicine their biocompatibility makes them ideal for implants and surgical instruments. It is also used in the marine environment for ship cargo and offshore structures due to its excellent corrosion resistance. Additionally, these coils are used in automotive, chemical processing, and energy industries for durable and efficient operation.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
