Wiraphan Sheets and Plates, a reputable manufacturer and supplier based in Bangkok, Thailand, is well-known for its top-notch Hastelloy B3 Sheets and Plates. The company focuses on providing nickel-molybdenum alloy products that adhere to international standards for corrosion resistance, mechanical strength, and durability. Hastelloy B3 is particularly prized in highly corrosive settings, especially for dealing with hydrochloric acid and other reducing agents at elevated temperatures. Wiraphan offers these sheets and plates in a variety of sizes and thicknesses, ensuring precision-engineered, reliable materials for chemical processing, petrochemical, and other industrial applications that demand high-performance corrosion-resistant alloys.
Hastelloy B3 Sheets and Plates are primarily made up of nickel (≥61%) and molybdenum (28–32%), along with trace amounts of iron, tungsten, and cobalt. This meticulously controlled composition grants exceptional resistance to localized corrosion, stress corrosion cracking, and aggressive reducing media, all while maintaining impressive tensile strength and ductility. In terms of mechanical properties, these sheets and plates boast a tensile strength of 485–690 MPa, a yield strength of around 240–310 MPa, and good elongation, ensuring reliable performance during fabrication and in highly corrosive operational environments.
Specifications :ASTM B333 / ASME SB333
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 4000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

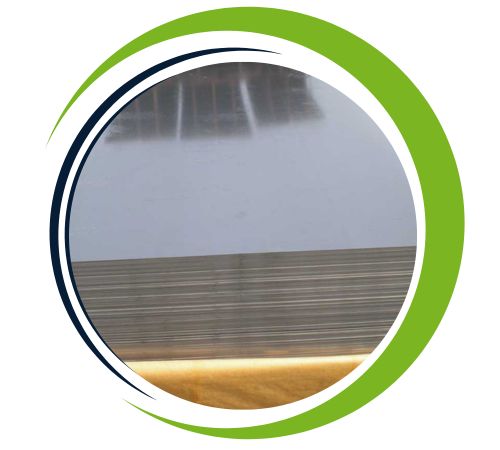

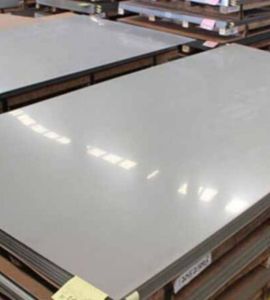

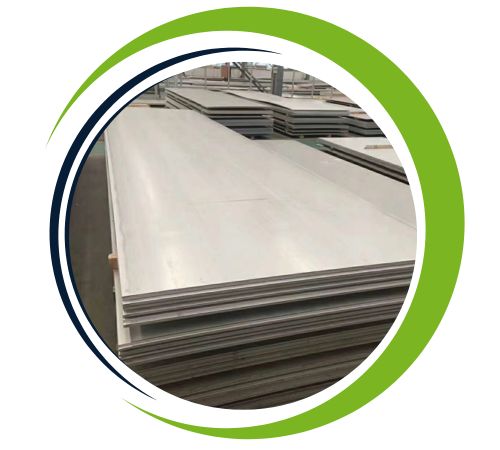

Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | Al | Co | Ni | Cr | Fe | Mo | Ti |
| Hastelloy B3 | 0.01 max | 3.0 max | 0.10 max | 0.50 max | 3.0 max | 65.0 min | 1.5 | 1.5 | 28.5 | 0.2 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 9.22 g/cm3 | 1418°C (2585°F) | 1000 – 2000 N/mm² , 145 – 290 ksi | 62 – 183 Ksi, 425 – 1260 MPa | 57 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy B3 | 2.4600 | N10675 |
Stocked Sizes | |
|---|---|
Size (in inches) | Size (in mm) |
.125″ | 3.18mm |
.134″ | 3.40mm |
.156″ | 3.96mm |
.187″ | 4.75mm |
.250″ | 6.35mm |
.312″ | 7.92mm |
.375″ | 9.53mm |
.500″ | 12.7mm |
.600″ | 15.9mm |
.750″ | 19.1mm |
.875″ | 22.2mm |
1″ | 25.4mm |
1.125″ | 28.6mm |
1.250″ | 31.8mm |
1.500″ | 38.1mm |
1.750″ | 44.5mm |
2″ | 50.8mm |
2.500″ | 63.5mm |
3″ | 76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy B3 Sheets and Plates find extensive use in chemical reactors, heat exchangers, piping systems, valves, and vessels that come into contact with hydrochloric acid and other aggressive reducing chemicals. Their remarkable corrosion resistance, toughness, and durability make them perfect for chemical processing, petrochemical, and industrial applications where long-term reliability is crucial. Hastelloy B3 Sheets and Plates offer a dependable, high-performance solution for industries that require durable, corrosion-resistant, and mechanically robust nickel-molybdenum alloy materials.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Hastelloy B3 sheets and plates are widely used in industries that demand exceptional corrosion resistance. They are commonly employed in chemical processing, such as reactors, heat exchangers, and storage tanks, where exposure to hydrochloric and sulfuric acids is prevalent. These materials are also utilized in the petroleum and petrochemical industries for components that need to withstand harsh conditions. Additionally Hastelloy B3 is used in pollution control systems, flue gas desulfurization units, and other high-corrosion environments, offering reliable performance and durability in demanding applications.
