Incoloy 825 Coil/Slitting Coil

Wiraphan Sheets and Plates, a reputable manufacturer and supplier located in Bangkok, Thailand, proudly offers top-notch Incoloy 825 Coil and Slitting Coil designed for the most demanding chemical, industrial, and aerospace applications. Crafted with precision and a commitment to international standards, these coils deliver outstanding corrosion resistance, impressive tensile strength, and durability even in high temperatures and harsh chemical environments. The Incoloy 825 Coil/Slitting Coil from Wiraphan is a go-to choice in industries where materials face thermal cycling, mechanical stress, and severe corrosive conditions. With a strong emphasis on timely delivery, competitive pricing, and exceptional customer support, the company guarantees a reliable supply for both local and international clients.

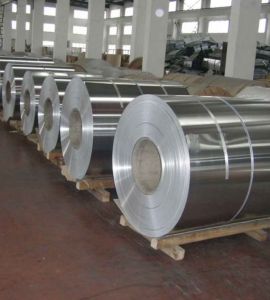

825 Incoloy Coils

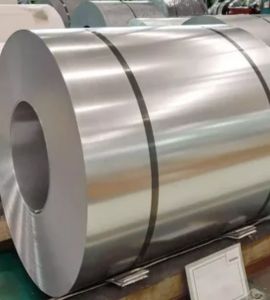

Incoloy 825 CR Coils

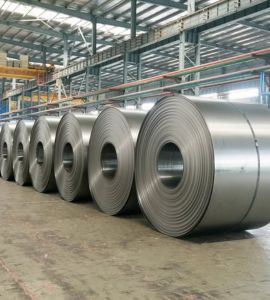

Incoloy 825 HR Coil

UNS N08825 Incoloy Coils Price in Nonthaburi, Alloy 825 Coils Weight Chart, Incoloy Grade 825 Coils Supplier in Thailand, Wide Range of Incoloy Gr.825 Coils in Chiang Mai, Alloy 825 Cold Rolled Coils Supplier in Thailand, Incoloy 825 HR Coil Price List in Bangkok, Incoloy 825 Coils Supplier in Chiang Mai, Incoloy 825 Hot Rolled Coil Exporter in Pattaya, ASTM B409 Incoloy 825 Coil Exporter in Thailand, Incoloy 825 Slitting Coils Exporter in Rayong, Incoloy 825 Shim Coils in Nonthaburi

The Incoloy 825 Coil/Slitting Coil is primarily made up of nickel (38–46%), iron (the balance), and chromium (19.5–23.5%), along with molybdenum (2.5–3.5%), copper (1.5–3.0%), and a maximum of 0.6% titanium. This unique composition offers remarkable resistance to oxidation, pitting, and stress corrosion cracking, all while maintaining excellent tensile strength, toughness, and fatigue resistance. Mechanically, these coils showcase high ductility, dimensional stability, and formability, making them perfect for forming, slitting, and precision fabrication in tough environments and high-stress applications.

Incoloy 825 Coil/Slitting Coil Specification

Specification	ASTM B409 / ASME SB409
Thickness	Plate 0125″ to 5.00″ / Sheets 008″ to .0125″
Sheet / Plates Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Sheet / Plates Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Sheets Hardness	Half Hard, Quarter Hard, Soft, Hard, Spring Hard
Plate / Sheets Size	15NB to 150NB In
Tempers	Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Coils Thickness	0.3 mm to 120 mm
Coils Length	AS PER CUSTOMER’S REQUIREMENT
Form	Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils
Value Added Service	Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

Incoloy 825 Coil/Slitting Coil Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Incoloy 825 Coil/Slitting Coil Mechanical Properties

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %

Equivalent Grades of Incoloy 825 Coil/Slitting Coil

STANDARD	UNS	WERKSTOFF NR.	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	N08825	2.4858	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	XH38BT

Incoloy 825 Ring Coils Manufacturer in Pattaya, Alloy 825 Coils Rayong, 825 Incoloy Coils Supplier in Bangkok, ASME SB409 Incoloy 825 Coils Exporter in Chiang Mai, Incoloy 825 Slitting Coil Manufacturer in Thailand, 825 Incoloy Coils Distributor in Rayong, Incoloy 825 Cold Rolled Coils Supplier in Pattaya, Incoloy 825 Cold rolled Coils Distributor in Thailand, Incoloy UNS N08825 Coils Sizes in mm

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Incoloy 825 Coil/Slitting Coil Manufacturer and Exporter in Bangkok, Thailand

Wiraphan Sheets and Plates based in Bangkok, Thailand, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Incoloy 825 Coil/Slitting Coil Sizes

Steel Coil	Size (mm)	Weight per Coil (Kg)	Size(mm)	Weight per Coil (Kg)
Incoloy 825 Coil	4000 x 2000 x 2.0	136.0	3000 x 1500 x 5.0	191.0
Incoloy 825 Coil	4000 x 2000 x 3.0	204.0	4000 x 2000 x 5.0	340.0
Incoloy 825 Coil	2500 x 1250 x 4.0	106.0	2500 x 1250 x 6.0	159.0
Incoloy 825 Coil	3000 x 1500 x 4.0	153.0	3000 x 1500 x 6.0	230.0
Incoloy 825 Coil	4000 x 2000 x 4.0	272.0	4000 x 2000 x 6.0	408.0
Incoloy 825 Coil	2500 x 1250 x 5.0	133.0

Alloy 2.4858 Coil Distributor in Thailand, Incoloy 825 Hot Rolled Coil Supplier in Bangkok, Incoloy Coils Grade 825 Weight Chart, Incoloy 825 Coils Exporter in Chiang Mai, Grade 825 Incoloy Coils Manufacturer in Pattaya, ASTM B409 Alloy 825 Coils Price List in Thailand, Incoloy 825 CR Coils Sizes in mm, Incoloy 825 Ring Coils Distributor in Rayong, Incoloy 825 Slitting Coil in Nonthaburi

Incoloy 825 Coil/Slitting Coil finds extensive use in the chemical processing, petrochemical, marine, power generation, and aerospace sectors. They are particularly well-suited for creating components for heat exchangers, turbine parts, flanges, fasteners, gaskets, and other critical equipment that must withstand high temperatures and corrosive conditions. Additionally, these coils are utilized in chemical reactors, industrial ovens, and offshore platforms where durability, mechanical strength, and corrosion resistance are crucial. The combination of high-temperature performance, mechanical reliability, and corrosion resistance makes Incoloy 825 Coil/Slitting Coil a preferred choice in various demanding applications.

Types of Incoloy 825 Coil/Slitting Coil

UNS N08825 Incoloy Coils Dealer in Pattaya, Incoloy 825 Coils Supplier in Pattaya, Incoloy 825 Coils in Rayong, ASME SB409 Incoloy 825 Coils Size Chart, Incoloy 825 Coils Price in Nonthaburi, Incoloy 825 Cold rolled Coils Supplier in Thailand, Incoloy 825 Shim Coils Stockist in Chiang Mai, ASME SB409 Alloy 825 Coils Exporter in Thailand, Incoloy 825 Coils Stockist in Bangkok, DIN 2.4858 Incoloy Coils Supplier in Chiang Mai

Are Custom Sizes Available for Incoloy 825 Coil/Slitting Coil?

Yes, we offer custom sizes for Incoloy 825 Coil/Slitting Coil to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Incoloy 825 Coil/Slitting Coil

Incoloy 825 coil/slitting coils are widely used in applications requiring high temperature and corrosion resistance. Typical applications include heat exchangers, superheaters and reheaters in power plants, and furnace components and equipment for petrochemical processes Ideal for chemical and nuclear industries due to its resistance to oxidation, carburization and stress corrosion cracking. Additionally, they are used in combustion fixtures, piping systems, and pressure vessels, providing reliability in harsh environments, including acidic and oxidizing conditions, over time maintain good mechanical strength and stability.
