Incoloy 825 Sheets and Plates

If you’re looking for top-notch Incoloy 825 Sheets and Plates, look no further than Wiraphan Sheets and Plates, a reputable manufacturer and supplier based in Bangkok, Thailand. These premium-quality sheets and plates are designed for industries that require outstanding resistance to both corrosion and heat. Incoloy 825 is a unique alloy made from nickel, iron, and chromium, with added molybdenum, copper, and titanium, which gives it remarkable durability in both oxidizing and reducing environments. These products are highly sought after for their performance in tough chemical and marine conditions. Available in a range of sizes and thicknesses, Incoloy 825 Sheets and Plates are crafted to meet international standards, ensuring they are durable, reliable, and built to last.

Incoloy 825 Sheets Dealer in Pattaya, Incoloy 2.4858 Plates Supplier in Pattaya, Incoloy 825 Sheets in Rayong, 825 Incoloy Plates Size Chart, Incoloy 825 Sheet Price in Nonthaburi, Incoloy 825 Plates Supplier in Thailand, 825 Incoloy Sheet Stockist in Chiang Mai, 825 Incoloy Alloy Sheets and Plates Exporter in Thailand, Incoloy 825 Sheet Stockist in Bangkok, Incoloy Plates Supplier in Chiang Mai

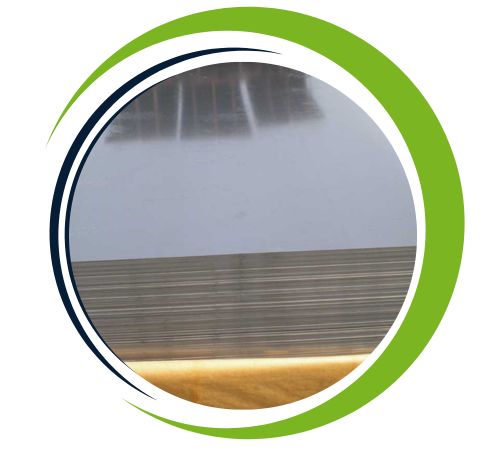

Incoloy 825 Cold Rolled Plates

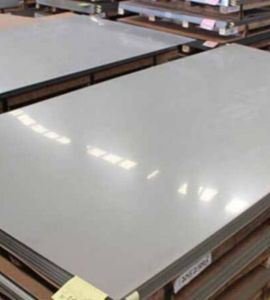

Incoloy 825 Hot Rolled Plates

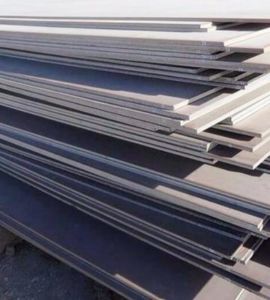

Incoloy 825 Clad Sheets and Plate

The composition of Incoloy 825 Sheets and Plates includes nickel (38–46%), iron (22%), chromium (19–23%), molybdenum (2.5–3.5%), copper (1.5–3%), and titanium (0.6–1.2%). This special mix provides exceptional resistance to pitting, crevice corrosion, and stress-corrosion cracking, particularly in environments with chloride. On the mechanical side, Incoloy 825 boasts a tensile strength of about 550–690 MPa, a yield strength of around 220–300 MPa, and impressive elongation, maintaining its toughness and ductility even at higher temperatures.

Incoloy 825 Sheets and Plates Specification

Specifications:	ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443
Thickness:	4 mm To 100 mm
Length:	2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm，or as required
Width:	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,or as required
Grade	800/ 800H/ 800HT/ 825
Application	Building industry,architectural decoration,elevators,building doors,panels and so on.
Standard:	ASTM，AISI，JIS，GB， DIN，EN
Surface:	BA，2B，NO.1，NO.4，4K，HL，8K
Certification:	ISO, SGS，BV
Technique:	Cold Rolled Hot Rolled
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Sheets, Plates, Coils, Slatting Coils, Perforated Coils

Incoloy 825 Sheet and Plate Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Alloy 825 Sheet and Plate Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %

Equivalent Grades for 825 Incoloy Sheet and Plates

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	XH38BT

825 Incoloy Sheets Price in Nonthaburi, 825 Incoloy Hot Rolled Weight Chart, Incoloy N08825 Cold Rolled Supplier in Thailand, Stockist of Incoloy 825 Alloy Cold Rolled Sheets in Chiang Mai, 825 Incoloy Perforated Sheet Supplier in Thailand, Incoloy 825 Perforated Plates Price List in Bangkok, Alloy Perforated Plates Supplier in Chiang Mai, Incoloy 825 Chequered Plates Exporter in Pattaya, Incoloy Alloy 825 Polished Plates Exporter in Thailand, 825 Incoloy Perforated Plates Exporter in Rayong, 825 Incoloy Sheet and Plate in Nonthaburi

Weight Chart of 825 Incoloy Alloy Sheets and Plates

Thickness	Plate Weight per Unit Area	Density
3/16 inches	0.06000 lbs/in²42.184176 kg/m²	0.315 lbs/in³8.72 g/cm³
1/4 inches	0.08 lbs/in²56.245568 kg/m²	0.315 lbs/in³8.72 g/cm³
3/8 inches	0.121 lbs/in²85.0714216 kg/m²	0.315 lbs/in³8.72 g/cm³
1/2 inches	0.161 lbs/in²113.1942056 kg/m²	0.315 lbs/in³8.72 g/cm³
5/8 inches	0.196 lbs/in²137.8016416 kg/m²	0.315 lbs/in³8.72 g/cm³
3/4 inches	0.235 lbs/in²165.221356 kg/m²	0.315 lbs/in³8.72 g/cm³
7/8 inches	0.274 lbs/in²192.6410704 kg/m²	0.315 lbs/in³8.72 g/cm³
1 inches	0.313 lbs/in²220.0607848 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/4 inches	0.391 lbs/in²274.9002136 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/2 inches	0.47 lbs/in²330.442712 kg/m²	0.315 lbs/in³8.72 g/cm³
1 3/4 inches	0.549 lbs/in²385.9852104 kg/m²	0.315 lbs/in³8.72 g/cm³
2 inches	0.627 lbs/in²440.8246392 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/4 inches	0.705 lbs/in²495.664068 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/2 inches	0.784 lbs/in²551.2065664 kg/m²	0.315 lbs/in³8.72 g/cm³
2 3/4 inches	0.862 lbs/in²606.0459952 kg/m²	0.315 lbs/in³8.72 g/cm³
3 inches	0.941 lbs/in²661.5884936 kg/m²	0.315 lbs/in³8.72 g/cm³

Incoloy 825 Plate Size

Incoloy 825 Plates STOCKED SIZES
SIZE	ALLOY 825	SIZE
.125″	X	3.18mm
.134″		3.40mm
.156″	X	3.96mm
.187″	X	4.75mm
.250″	X	6.35mm
.312″	X	7.92mm
.375″	X	9.53mm
.500″	X	12.7mm
.625″	X	15.9mm
.750″	X	19.1mm
.875″		22.2mm
1″	X	25.4mm
1.125″		28.6mm
1.250″	X	31.8mm
1.500″	X	38.1mm
1.750″	X	44.5mm
2″	X	50.8mm
2.500″	X	63.5mm
3″		76.2mm

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Incoloy 825 Sheet and Plates Manufacturer and Exporter in Bangkok, Thailand

Wiraphan Sheets and Plates based in Bangkok, Thailand, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

DIN 2.4858 Incoloy Clad Sheets Distributor in Thailand, 825 Incoloy Perforated Plates Supplier in Bangkok, 825 Incoloy Perforated Sheet Weight Chart, Incoloy 825 Plate Exporter in Chiang Mai, 825 Incoloy Polished Sheets Manufacturer in Pattaya, Incoloy 825 Shim Sheet and Plate Price List in Thailand, 825 Incoloy Chequered Plates Sizes in mm, Incoloy Alloy 825 Hot Rolled Plate Distributor in Rayong, 825 Incoloy Sheets and Plates Nonthaburi

Incoloy 825 Sheets and Plates find their place in various applications, including chemical processing, marine engineering, oil and gas sectors, pollution control equipment, and acid production facilities. They excel in handling sulfuric and phosphoric acids, seawater, and other aggressive chemicals. Their ability to withstand both oxidizing and reducing agents makes them a fantastic option for heat exchangers, tanks, pressure vessels, piping systems, and marine equipment. With Incoloy 825 Sheets and Plates, industries gain a dependable, corrosion-resistant solution for even the harshest environments.

Types of Incoloy 825 Sheet and Plates

UNS N08825 Incoloy Plates Manufacturer in Pattaya, 825 Incoloy Plates and Sheets Rayong, Incoloy 825 Mirror Finish Plates Supplier in Bangkok, 825 Incoloy Polished Plates Exporter in Chiang Mai, Incoloy 825 Alloy Chequered Plates Price List in Thailand, Incoloy 825 Cold Rolled Plate Distributor in Rayong, 825 Incoloy Clad Plates and Sheets Supplier in Pattaya, Incoloy 825 Sheet and Plate Distributor in Thailand, 825 Incoloy Perforated Plate Sizes in mm

Are Custom Sizes Available for Incoloy 825 Sheet and Plates?

Yes, we offer custom sizes for Incoloy 825 Sheet and Plates to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Incoloy 825 Sheet and Plates

Incoloy 825 sheets and plates are widely used in applications requiring good corrosion resistance and high temperature stability. Typical applications include chemical equipment, such as heat exchangers, reactors and tanks, and pollution control systems. Their resistance to sulfuric acid and other catalysts is excellent in the petrochemical, oil and gas industries. Incoloy 825 is used in the marine environment, aerospace and nuclear reactors. The ability to withstand extreme conditions makes it desirable for many high-performance applications.
