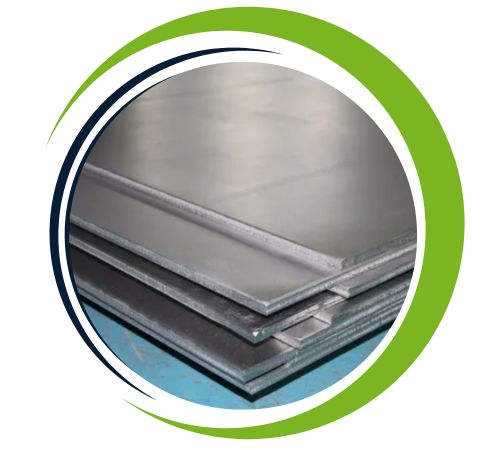

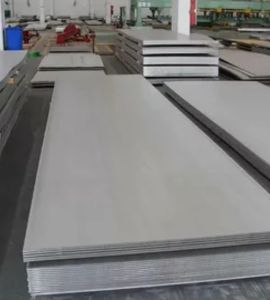

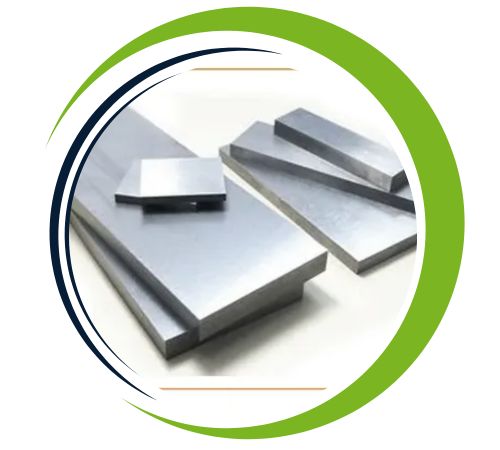

Wiraphan Sheets and Plates, based in Bangkok, Thailand, is a reliable supplier of high-performance nickel-based alloys, including Rene 41 Sheets and Plates. These materials are specifically engineered for extreme aerospace and high-temperature applications. Rene 41 is a precipitation-hardenable superalloy that excels in maintaining impressive mechanical strength and oxidation resistance, even at elevated temperatures. Wiraphan offers Rene 41 plates in a variety of thicknesses and sizes, all while adhering to strict quality standards that are essential for critical environments. With a commitment to precision and material integrity, Wiraphan serves industries such as aerospace, defense, power generation, and high-performance engineering.
Rene 41 Sheets and Plates are primarily made up of Nickel (around 50%), along with Chromium (19%), Cobalt (11%), and trace amounts of Molybdenum, Titanium, and Aluminum. This unique blend provides Rene 41 with remarkable tensile strength (up to 1,400 MPa) and excellent creep resistance at temperatures reaching 870°C (1600°F). It also boasts outstanding oxidation and corrosion resistance in high-temperature settings. The alloy undergoes age-hardening through heat treatment, which boosts its strength, but it does require specialized machining and welding techniques due to its high hardness.
| Standard Specification : | AMS 5545, AMS 5712, AMS 5713, AMS 5800, EN 2.4973, GE B50T59, GE B50TF109, GE B50TF76, UNS N07041, Werkstoff 2.4973 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | UNS | Workstoff | AMS | GE |
| Rene 41 | N07041 | 2.4973 | AMS 5545, AMS 5712, AMS 5713, AMS 5800 | GE B50TF109, GE B50TF76 |
| Cr | Ni | Mo | Co | Al | Ti | B | C | Fe | Mn | Si | S | Cu | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 18.00 | — | 9.00 | 10.00 | 1.40 | 3.00 | 0.003 | — | — | — | — | — | — |
| MAX | 20.00 | Balance | 10.50 | 12.00 | 1.80 | 3.30 | 0.01 | 0.12 | 5.00 | 0.10 | 0.50 | 0.015 | 0.50 |
| Mechanical & Physical Properties | 21°C | 427°C | 538°C | 649°C | 760°C | 871°C | 982°C |
|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength /MPa | 1261.7 | – | – | 1117 | 1048 | 710.2 | – |
| 0.2% Yield Strength /MPa | 820.5 | – | – | 765.3 | 751.5 | 579.2 | – |
| Elongation % | 21 | – | – | 14 | 14 | 11 | – |
| Coefficient of Thermal Expansion µm/m⁰C | – | 13.3 | 13.7 | 14.3 | 15.1 | 15.5 | 16.7 |
| Thermal Conductivity /kcal/(hr.m.°C) | – | 14.4 | 16.1 | 17.9 | 19.6 | 21.4 | – |
| Modulus of Elasticity / x105 MPa | – | 2 | 1.93 | 1.79 | 1.72 | 1.65 | 1.52 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Wiraphan Sheets and Plates based in Bangkok, Thailand, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Rene 41 sheets and plates offer numerous advantages, making them a preferred choice for demanding applications. They provide exceptional strength and durability, maintaining integrity under extreme temperatures and high-stress conditions. Their superior heat resistance and oxidation protection ensure long-lasting performance in environments exceeding 980°C (1800°F). With excellent corrosion resistance, Rene 41 is ideal for aerospace, power generation, and automotive industries. Its outstanding weldability and machinability enable precise fabrication for complex components. These properties make Rene 41 sheets and plates a reliable and versatile solution for critical, high-performance applications.
Yes, we offer custom sizes for Rene 41 Sheets and Plates to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.
Rene 41 Sheets and Plates find extensive use in demanding aerospace applications, including turbine engine components, afterburners, exhaust ducts, and jet engine parts. Their ability to perform under high temperatures and maintain structural stability makes them ideal for missile systems, rocket motors, and other critical components in defense and aerospace sectors. In the industrial realm, Rene 41 is also utilized in high-temperature tooling, gas turbine blades, and chemical processing equipment that face extreme thermal and mechanical stress. Its strength, durability, and resistance to heat and oxidation make it perfect for the toughest operating environments.
