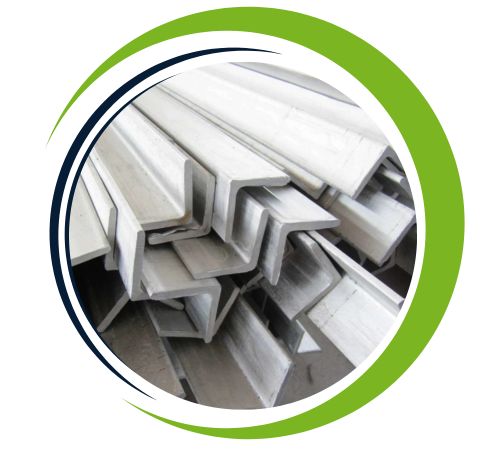

Wiraphan Sheets and Plates, a top-notch manufacturer and supplier based in Bangkok, Thailand, specializes in high-quality Stainless Steel 202 Angles. These angles are celebrated for their impressive corrosion resistance, strength, and formability. Crafted with cutting-edge techniques and rigorous quality control, they meet both industrial and commercial standards, ensuring reliable performance even in tough conditions. Wiraphan is committed to providing stainless steel solutions that blend durability, structural integrity, and a sleek finish, making them perfect for a variety of applications in construction, industrial equipment, automotive, and architectural projects where dependable and long-lasting performance is a must.
Stainless Steel 202 Angle is an austenitic stainless steel that contains around 17–19% chromium, 4–6% nickel, and 7–9% manganese, with a maximum carbon content of 0.15%. This unique composition offers excellent corrosion resistance, high tensile strength, and remarkable ductility, making it ideal for bending, welding, and forming processes. In terms of mechanical properties, 202 angles show moderate yield and tensile strength, toughness, and resistance to scaling at higher temperatures. These characteristics guarantee long-term reliability, flexibility, and structural stability across a range of applications.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 202 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 202 | S20200 | 1.4373 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 202 Angles find their place in construction, structural frameworks, automotive parts, and industrial machinery. They are perfect for supports, braces, frames, racks, and decorative structures where strength and corrosion resistance are crucial. Moreover, 202 angles are utilized in storage tanks, chemical equipment, and environments with moderate corrosive elements, ensuring durability and reliability. With their blend of toughness, flexibility, and corrosion resistance, 202 Angles from Wiraphan Sheets and Plates provide effective, long-lasting solutions for various industrial, structural, and architectural needs.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | SS 202 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 202 Angle Bar (kilogram/meter) |
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
Stainless Steel 202 Angle is commonly used in construction, building operations and building design due to excellent corrosion resistance and durability Ideal for fabricating frameworks, supports and reinforcements in industries such as construction, engineering and construction . . . . Furthermore, its anti-oxidation properties make it suitable for outdoor use and extremely humid environments. Stainless Steel 202 Angle is commonly used in railings, brackets, appliances, and other structural elements, providing strength and longevity under harsh conditions.
