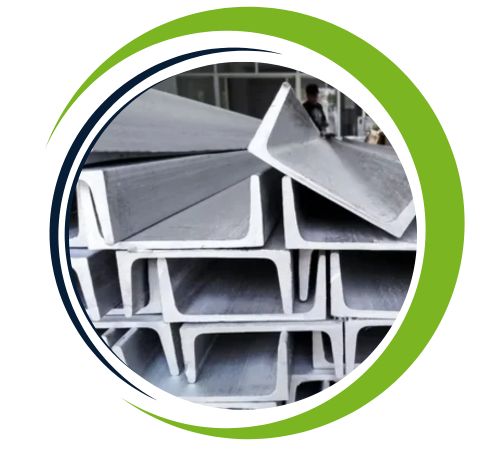

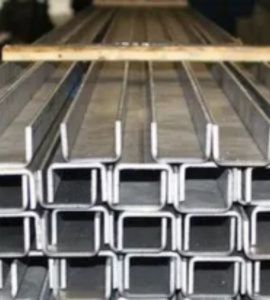

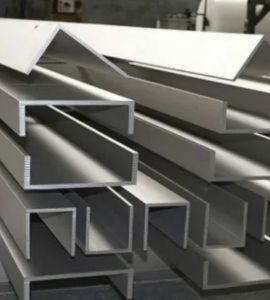

Wiraphan Sheets and Plates, a reputable manufacturer and supplier based in Bangkok, Thailand, specializes in delivering top-notch **Titanium Grade 2 Channels** that are perfect for high-performance industrial applications. These channels are celebrated for their lightweight design, impressive corrosion resistance, and outstanding strength-to-weight ratio, making them a great fit for tough environments. At Wiraphan, we prioritize precision in manufacturing, durability, and adherence to global standards, ensuring our Titanium Grade 2 Channels meet the needs of various sectors, including aerospace, marine, chemical, construction, and medical industries. With a strong commitment to excellence, we offer cost-effective and long-lasting solutions for both local and international clients.
Titanium Grade 2 Channels are primarily made of titanium, with trace amounts of oxygen, nitrogen, carbon, hydrogen, and iron, which boost their strength and resistance to corrosion. They boast a tensile strength of around 350 MPa, a yield strength of 275 MPa, and an elongation of 20%, ensuring they are tough and formable. With a density of 4.51 g/cm³ and a high melting point of about 1660°C, these channels strike a perfect balance between being lightweight and mechanically durable. Their excellent weldability, ductility, and resistance to oxidizing environments make them ideal for a variety of structural and industrial applications.
Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Size : Grade 2 Titanium angle bar sizes : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm
Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (depending on size)
Angle Length: Upto 6 Meters Long
Processing: Bar Cutting
Application: Paper Industry, Architucture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More
Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle

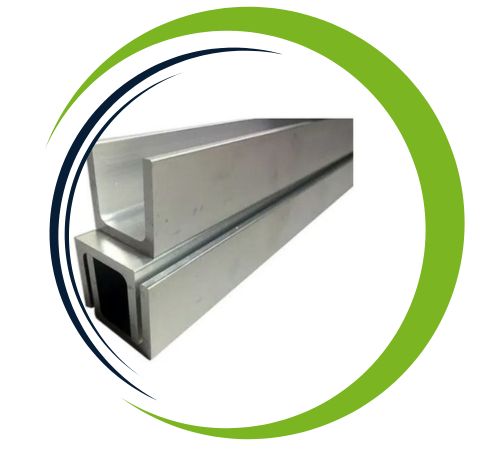

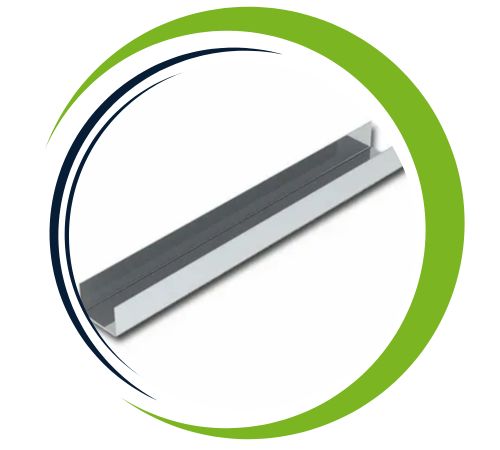

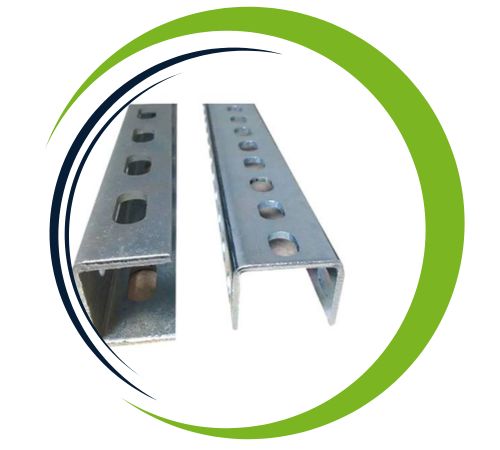

Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 2 | 3.7035 | R50400 |
| Element | C | Mn | N | H | Ti | Fe | O |
| Titanium Gr2 | 0.1 max | 2.00 max | 0.03 max | 0.015 max | 99.2 min | 0.3 max | 0.25 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Titanium Gr2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Wiraphan Sheets and Plates based in Bangkok, Thailand, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium Grade 2 Channel offers several advantages, making it ideal for demanding applications. It is known for its excellent corrosion resistance, particularly in harsh environments like saltwater and acidic conditions. The material is lightweight yet strong, providing high strength-to-weight ratios. It also boasts outstanding weldability and formability, making it versatile for various manufacturing processes. Additionally, Titanium Gr 2 is biocompatible and non-reactive, ensuring safety in medical and aerospace industries. Its resistance to stress corrosion cracking, high durability, and long service life further enhance its appeal across numerous industries.
| Sizes (all Dimensions in milimeter) | Approx Weight Titanium Gr.2 Angle Bar (kilogram/meter) | Titanium Gr 2 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Titanium Grade 2 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Titanium Grade 2 Channel to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.
Titanium Grade 2 Channels are widely used across different industries due to their versatility and durability. In the **aerospace sector**, they find applications in aircraft frames, engine components, and support structures. The **marine industry** utilizes them in shipbuilding, desalination plants, and offshore platforms, thanks to their resistance to seawater corrosion. In **chemical processing**, they are essential for tanks, piping systems, and reactors that handle corrosive substances. The **medical industry** appreciates their biocompatibility for use in implants and surgical instruments. Additionally, these channels are employed in construction, automotive, and power generation sectors where lightweight, corrosion-resistant, and strong structural materials are crucial.
