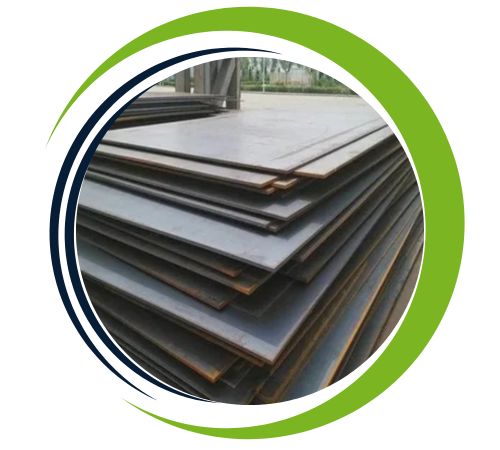

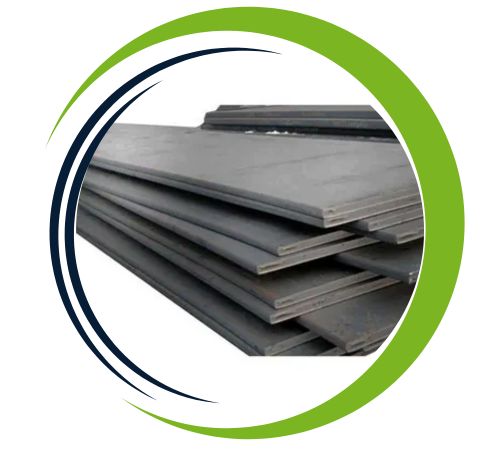

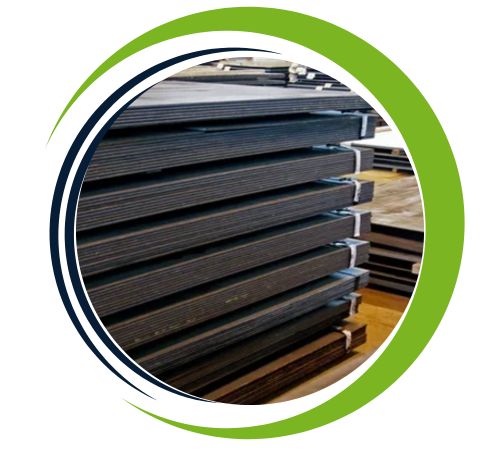

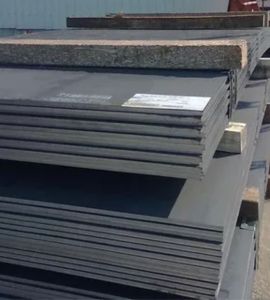

Wiraphan Sheets and Plates, based in Bangkok, Thailand, stands out as a top manufacturer and supplier of pressure vessel quality steel, particularly SA537 Class 1 Boiler Sheets and Plates. These plates are specifically designed for high-pressure applications and are crafted using cutting-edge processes to comply with ASME standards. The SA537 Class 1 plates from Wiraphan are renowned for their exceptional toughness, strength, and weldability, making them perfect for fabricating boilers and pressure vessels. With a reputation for consistent quality and timely delivery, Wiraphan caters to vital industries like oil & gas, petrochemical, and power generation, providing dependable steel solutions.
The SA537 Class 1 Boiler Sheets and Plates are produced from carbon-manganese-silicon steel and come in a normalized condition. Their typical chemical makeup includes Carbon (≤0.24%), Manganese (0.7–1.6%), and Silicon (0.13–0.45%), along with minimal amounts of Phosphorus and Sulfur (≤0.035%). On the mechanical side, SA537 Class 1 boasts a minimum yield strength of 345 MPa and a tensile strength ranging from 485 to 620 MPa. These plates are known for their excellent notch toughness, making them suitable for applications that require moderate to high pressure and good weldability.
Grade : ASME SA 537 CL.1 Boiler and Pressure Vessel Steel Plates
Width : 1000mm-4500mm
Thickness : 5mm-150mm
Length : 3000mm-18000mm
Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : -52° C
Tempering : Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications : Used for Boilers and Pressure Vessels Application.

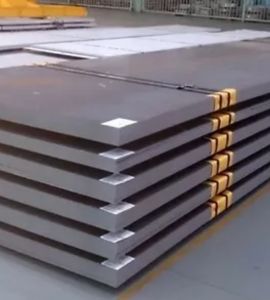

Process of Manufacturing : Hot-Rolled (HR)
| C | Mn | P | S | Si | Cr | Cu | Ni | Mo | |
| ≤ 40 mm | > 40 mm | ||||||||
| 0.24 max | 0.70/1.35 | 1.00/1.60 | 0.035 | 0.035 | 0.15/0.50 | 0.025 | 0.35 | 0.25 | 0.080 |
| Grade | Heat Treatment | Yield (MPa) | Tensile (MPa) | Elongation | Thickness | |
| A50mm | A200mm | |||||
| SA537 Class 1 | Normalized | 345 | 485/620 | 22% | 18% | ≤ 65 |
| 310 | 450/585 | 22% | 18% | > 65 ≤ 100 | ||
| Steel Grade | JIS | Germany |
| ASTM/ASME | G3115 | DIN17155 |
| A537 / SA537 | SPV36 | 19Mn5 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

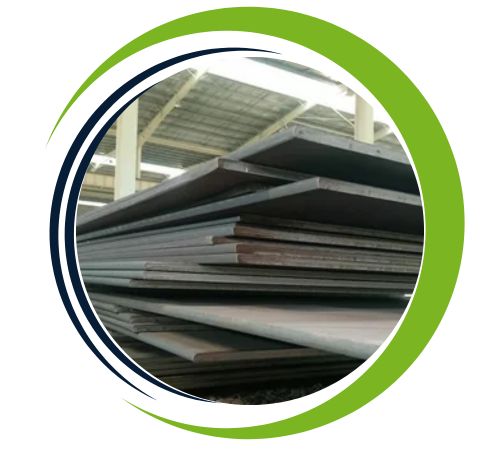

SA537 Class 1 Boiler Sheets and Plates find extensive use in the fabrication of pressure vessels, industrial boilers, storage tanks, and heat exchangers. They are particularly well-suited for components that experience internal pressure and high temperatures. Common applications include reactors, separators, gas scrubbers, and piping systems in oil refineries, chemical plants, and power facilities. The material’s toughness and durability make it a go-to choice for safety-critical structures where performance under pressure is crucial. Its versatility and adherence to ASME codes further establish SA537 Class 1 as a trusted material for engineers and fabricators alike.
SA537 Class 1 boiler sheet and plate are primarily used in the construction of pressure vessels and boilers that operate under high-pressure and temperature conditions. They are highly valued in industries such as power generation, chemical processing, and oil and gas. The material’s excellent weldability, high tensile strength, and thermal fatigue and pressure resistance make it ideal for manufacturing components like reactor vessels, heat exchangers, and pressure tanks. It is also used to fabricate parts that require strength and durability under demanding conditions.
