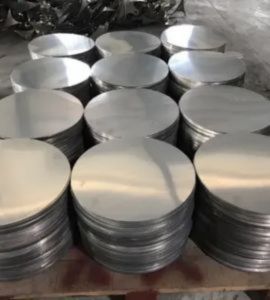

Super Duplex Steel S32750 Circles are expertly crafted components that shine in applications where strength, corrosion resistance, and durability are paramount. With their unique dual-phase austenitic-ferritic microstructure, these circles boast impressive resistance to pitting, crevice corrosion, and chloride stress corrosion cracking. This makes them perfect for use in marine, offshore, chemical, and petrochemical industries. Built to meet international quality standards, Super Duplex S32750 Circles promise long-lasting reliability, dimensional stability, and top-notch mechanical performance even in the toughest and most corrosive environments.
Typically, the composition of Super Duplex Steel S32750 Circles includes chromium (24–26%), nickel (6–8%), molybdenum (3–5%), nitrogen, and manganese. This blend gives them a tensile strength of around 800 MPa, with a yield strength that’s nearly double that of standard stainless steels, along with excellent impact toughness. The dual-phase structure not only ensures superior hardness but also enhances weldability and formability, all while maintaining performance across a wide temperature range. This makes them a fantastic choice for structural and industrial applications.
| Specifications | ASTM A240 / ASME SA240 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Thickness | 1 mm To 100 mm |
| Diameter | Upto 2000 mm |
| Circle | 3″ DIA up to 38″ DIA 1500 lbs max |
| Rings | 3″ OD up to 48″ OD Up to 900 lbs max |
| Cutting | Plazma & Machined Cut |
| Finish | HR, CR, 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Cold Rolled Circle, Small Flat Circle, Industrial Circle, Perforated Circle, Forged Steel Circles, Cnc Finish Circle, Polished Unique Circle, Hot Rolled Circle, Fey Laminar Rings, Proof Machined Rings, Cold Rolled Rings, Hot Rolled Rings, McInnes Rolled Rings, Die-Formed Rings, Forging Rings, CNC Machined Rings. |
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex S32750 | 1.4410 | S32750 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32750 | 7.8 | 0.281 | 1350 | 2460 |
Wiraphan Sheets and Plates based in Bangkok, Thailand, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
You’ll find Super Duplex Steel S32750 Circles widely used in the production of flanges, rings, washers, gaskets, and other precision-engineered components for offshore platforms, desalination plants, chemical processing units, and marine engineering. They’re also crucial in subsea equipment, heat exchangers, and pipelines where resistance to seawater and corrosive chemicals is essential. With their long service life, minimal maintenance needs, and high mechanical performance, Super Duplex Steel S32750 Circles offer a dependable, cost-effective solution for industries facing harsh and aggressive conditions.
Yes, we offer custom sizes for Super Duplex Steel S32750 Circle to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.
| Size | 18 G. | 19 G. | 20 G. | 22 G. | 24 G. | 26 G. |
| .4.5 | .0-107 | 0-085 | 0-080 | 0-062 | 0.049 | 0-040 |
| 5 | 0-120 | 0-095 | 0-090 | 0-070 | 0-055 | 0-045 |
| 5.5 | 0-146 | 0-119 | 0-109 | 0-085 | 0-066 | 0-054 |
| 6 | 0-172 | 0-136 | 0-130 | 0-100 | 0-079 | 0-064 |
| 6.5 | 0-200 | 0-153 | 0-150 | 0-128 | 0-093 | 0-074 |
| 7 | 0-235 | 0-190 | 0-176 | 0-136 | 0-107 | 0-088 |
| 7.5 | 0.270 | 0.212 | 0.201 | 0-157 | 0-123 | 0-100 |
| 8 | 0-307 | 0-240 | 0-230 | 0-180 | 0-140 | 0-115 |
| 8.5 | 0-347 | 0-270 | 0-262 | 0-202 | 0-156 | 0-130 |
| 9 | 0-388 | 0-330 | 0-301 | 0-230 | 0-178 | 0-145 |
| 9.5 | 0-472 | 0-342 | 0-324 | 0-252 | 0-198 | 0-162 |
| 10 | 0-480 | 0-380 | 0-360 | 0-280 | 0-220 | 0-180 |
| 11 | 0-580 | 0-450 | 0-435 | 0-338 | 0-266 | 0-218 |
| 12 | 0-690 | 0-540 | 0-518 | 0-403 | 0-318 | 0-253 |
| 13 | 0-811 | 0-640 | 0-508 | 0-608 | 0-371 | 0-304 |
| 14 | 0-940 | 0-750 | 0-708 | 0-558 | 0-430 | 0-352 |
| 15 | 1-080 | 0-860 | 0-808 | 0-650 | 0-495 | 0-405 |
| 16 | 1-228 | 0-960 | 0-921 | 0-736 | 0-563 | 0-460 |
| 17 | 1-382 | 1-080 | 0-940 | 0-809 | 0-635 | 0-560 |
| 18 | 1-595 | 1-200 | 1-116 | 0-907 | 0-712 | 0-683 |
| 19 | 1-732 | 1-350 | 1-300 | 1-010 | 0-794 | 0-750 |
| 20 | 1-920 | 1-400 | 1-340 | 1-120 | 0-880 | 0-785 |
| RAW MATERIAL | MAX. HARDNESS | TEMPERATURE | ABBREVIATIONSMARKER | |
| BRUCELLOSIS | ROCKWELL | |||
| SOFT IRON | 90 | 56 | -60 540 | D |
| LOW CB STEEL | 120 | 68 | -40 540 | S |
| 304SS | 160 | 83 | -250 700b | 304 |
| 304LSS | 150 | 83 | -250 450 | 304L |
| 316SS | 160 | 83 | -200 700b | 316 |
| 316LSS | 150 | 83 | -200 450 | 316L |
| 321SS | 160 | 83 | -200 700b | 321 |
| 347SS | 160 | 83 | -200 700b | 347 |
| 410SS | 170 | 86 | -40 650 | 410 |
| 5Cr-0.5Mo | 130 | -29 650 | ||
| COPPER | 80 | -100 315 | ||
| ALUMINUM | 35 | -200 425 | ||
| INCONEL 600 | 150 | -100 1095 | ||
| INCOLOY 825 | 160 | -100 1095 | ||
| MONEL 400 | 150 | -100 760 | ||
| TITANIUM | 215 | -200 540 | ||
| NICHEL 200 | 110 | -200 760 | ||
| HASTELLOY C276 | 200 | -100 1095 | ||
Super Duplex S32750 Circle is widely used in industries requiring high strength and exceptional corrosion resistance. Common applications include offshore oil and gas platforms, marine environments, and chemical processing, where exposure to harsh chemicals and seawater is prevalent. It is also utilized in pressure vessels, heat exchangers, and pipelines, especially in sour gas and seawater systems. Its ability to withstand extreme temperatures and aggressive environments makes it ideal for use in desalination plants, pulp and paper industries, and other sectors demanding high durability and performance.
