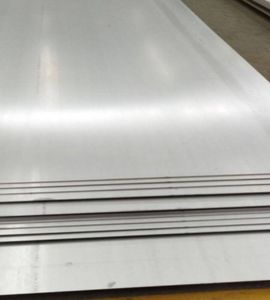

Super Duplex Steel Sheets and Plates are top-notch materials celebrated for their remarkable blend of strength, toughness, and outstanding resistance to corrosion. Thanks to their unique dual-phase microstructure, which combines austenite and ferrite, they stand up impressively against pitting, crevice corrosion, and chloride stress corrosion cracking. This makes them perfect for tough environments. You can find these sheets and plates in various sizes, thicknesses, and finishes, all crafted to meet international quality standards, ensuring they deliver durability, reliability, and excellent performance in demanding industrial settings.
When it comes to composition, Super Duplex Steel Sheets and Plates typically contain chromium (24–26%), nickel (6–8%), molybdenum (3–5%), along with nitrogen and manganese. This carefully balanced mix gives them a tensile strength of 750–850 MPa, nearly double the yield strength of regular stainless steels, and impressive impact toughness. They also boast great hardness, weldability, and structural stability across a wide range of temperatures, making them ideal for heavy-duty applications in challenging conditions.
| Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
| Dimensions | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Size Range | Cold Rolled : 0.5-6.4 mm Hot Rolled : 3.0–10.0 mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Thickness | 0.3 mm to 120 mm |
| International Standard of Sheets | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness | EN 10258/ DIN 59381 EN 10151 EN 10088 |
| Finish | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, soft annealed, descaled, sheared, annealed |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
| Element | C | Mn | Si | P | S | Cr | Ni | Mo | N | Fe |
| Super Duplex Steel Pipe Fittings | 0.030 max. | 2.00 max. | 1.00 max. | 0.030 max. | 0.020 max. | 21.0 – 23.0 | 4.50 – 6.50 | 2.50 – 3.50 | 0.08 – 0.20 | 63.54 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Super Duplex Steel Pipe Fittings | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
These sheets and plates are commonly used in sectors like oil and gas, chemical processing, desalination, marine engineering, and power generation. They’re perfect for building pressure vessels, heat exchangers, storage tanks, piping systems, and offshore structures where resistance to seawater and corrosive chemicals is crucial. With their high strength, low maintenance needs, and long service life, they offer a cost-effective solution for critical infrastructure and industrial projects. These qualities make them a dependable choice for applications that require both mechanical performance and corrosion resistance.
Yes, we offer custom sizes for Super Duplex Steel Sheet and Plates to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex 2507 | S32750 | 1.4410 |
| Sheet & Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished Sheet (not brushed) | 11–24 | 60 |
| Temper rolled Sheet Mexinox only | 13–29 | 48 |
| Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
| 3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
| 4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
| 5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
| 6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
| 8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
| 10 | 78.5 | 94 | 118 | 141 | 188 |
| 12 | 94.2 | 113 | 141 | 170 | 226 |
| 16 | 125.6 | 151 | 188 | 226 | 301 |
| 20 | 157 | 188 | 236 | 283 | 377 |
| 22 | 172.7 | 207 | 259 | 311 | 415 |
| 25 | 196.25 | 236 | 294 | 353 | 471 |
| 28 | 219.8 | 264 | 330 | 396 | 528 |
| 32 | 251.2 | 301 | 377 | 452 | 603 |
| 36 | 282.6 | 339 | 424 | 509 | 678 |
| 40 | 314 | 377 | 471 | 565 | 754 |
| 45 | 353.25 | 424 | 530 | 636 | 848 |
| 50 | 392.5 | 471 | 589 | 707 | 942 |
| 55 | 431.75 | 518 | 648 | 777 | 1036 |
| 60 | 471 | 565 | 707 | 848 | 1130 |
| 65 | 510 | 612 | 765 | 918 | 1224 |
| 70 | 549.5 | 659 | 824 | 989 | 1319 |
| 75 | 588.75 | 707 | 883 | 1060 | 1413 |
| 80 | 628 | 754 | 942 | 1130 | 1507 |
| 90 | 706.5 | 848 | 1060 | 1272 | 1696 |
| 100 | 785 | 942 | 1178 | 1413 | 1884 |
Super Duplex Steel Sheets and Plates are widely used in industries requiring high strength and resistance to aggressive environments. In the marine industry, they are utilized for shipbuilding and offshore structures due to their excellent corrosion resistance. They are also critical in chemical processing, petrochemical plants, and desalination facilities, where exposure to harsh chemicals and high pressures is common. Additionally, Super Duplex Steel is used in oil and gas exploration, as well as in structural applications where strength and durability under extreme conditions are essential.
