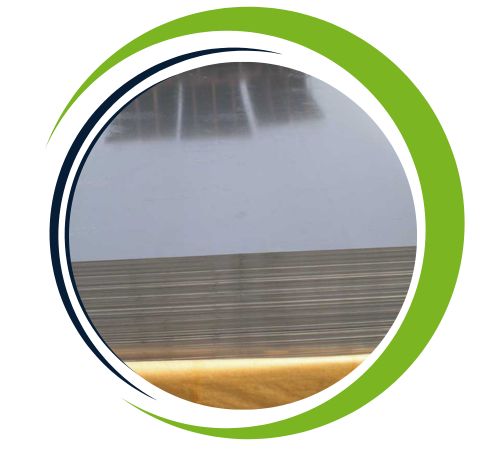

Wiraphan Sheets and Plates is a prominent manufacturer and supplier located in Bangkok, Thailand, specializing in top-notch Super Duplex Steel Sheet and Plates S32760. Renowned for their precision and durability, Wiraphan is dedicated to upholding international standards, delivering products that cater to the rigorous demands of industries worldwide. Their S32760 plates are designed for exceptional corrosion resistance and mechanical strength, making them perfect for challenging environments. With cutting-edge production capabilities and a strong focus on customer satisfaction, Wiraphan guarantees a reliable supply and consistent quality, establishing themselves as a trusted name in the steel manufacturing industry both locally and globally.
Super Duplex Steel S32760 consists of roughly 25% chromium, 7% nickel, 3.5% molybdenum, and 0.3% nitrogen, along with trace amounts of tungsten and copper. This well-balanced chemical makeup offers outstanding resistance to localized corrosion, such as pitting and crevice corrosion. The material boasts impressive mechanical properties, including a high tensile strength of about 750 MPa and a yield strength of around 550 MPa, with a 25% elongation. Its dual-phase microstructure enhances resistance to stress corrosion cracking while maintaining high toughness, even in low temperatures. These characteristics make S32760 a highly durable and dependable choice for extreme applications.
| Standard Specification : | Super Duplex Fittings |
| Coating Fitting Faces : | Cold and Hot Dip Galvanized, Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint |
| Thickness: | View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
| Rating Pressure: | Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS |
| Check Sizes: | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
| Standard: | MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b Fittings |
| Dimensions Class: | 2000#, 3000#, 6000#, 9000# |
| Application: | Chemical Industry Water Pipeline Industry Nuclear Power Plant Natural Gas Industry Fabrication Industry Oil And Gas Industry |
| Fitting Machining Equipment: | Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N | Fe |
| Super Duplex S32760 | 0.030 max. | 2.00 max. | 1.00 max. | 0.030 max. | 0.020 max. | 21.0 – 23.0 | 4.50 – 6.50 | 2.50 – 3.50 | 0.08 – 0.20 | 63.54 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Super Duplex S32760 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Super Duplex Steel Sheet and Plates S32760 are extensively utilized across various demanding industries due to their remarkable corrosion resistance and mechanical strength. You can commonly find them in offshore oil and gas platforms, subsea equipment, heat exchangers, chemical processing plants, and desalination systems. Their exceptional resistance to chloride-induced stress corrosion makes them particularly suitable for marine applications. In the pulp and paper industry, they play a crucial role in bleaching and digesting equipment. Additionally, structural and architectural projects benefit from S32760’s strength and durability, especially in environments exposed to saltwater or harsh chemicals.
Yes, we offer custom sizes for Super Duplex Steel Sheet and Plates S32760 to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.
| Sheet & Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |

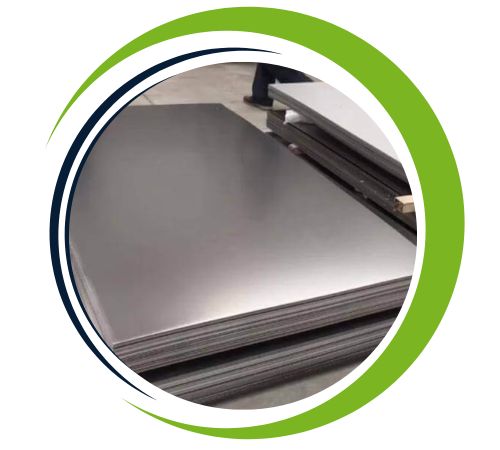

| Polished Sheet (not brushed) | 11–24 | 60 |
| Temper rolled Sheet Mexinox only | 13–29 | 48 |
| Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
| 3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
| 4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
| 5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
| 6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
| 8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
| 10 | 78.5 | 94 | 118 | 141 | 188 |
| 12 | 94.2 | 113 | 141 | 170 | 226 |
| 16 | 125.6 | 151 | 188 | 226 | 301 |
| 20 | 157 | 188 | 236 | 283 | 377 |
| 22 | 172.7 | 207 | 259 | 311 | 415 |
| 25 | 196.25 | 236 | 294 | 353 | 471 |
| 28 | 219.8 | 264 | 330 | 396 | 528 |
| 32 | 251.2 | 301 | 377 | 452 | 603 |
| 36 | 282.6 | 339 | 424 | 509 | 678 |
| 40 | 314 | 377 | 471 | 565 | 754 |
| 45 | 353.25 | 424 | 530 | 636 | 848 |
| 50 | 392.5 | 471 | 589 | 707 | 942 |
| 55 | 431.75 | 518 | 648 | 777 | 1036 |
| 60 | 471 | 565 | 707 | 848 | 1130 |
| 65 | 510 | 612 | 765 | 918 | 1224 |
| 70 | 549.5 | 659 | 824 | 989 | 1319 |
| 75 | 588.75 | 707 | 883 | 1060 | 1413 |
| 80 | 628 | 754 | 942 | 1130 | 1507 |
| 90 | 706.5 | 848 | 1060 | 1272 | 1696 |
| 100 | 785 | 942 | 1178 | 1413 | 1884 |
Super Duplex Steel Sheet and Plates S32760 are extensively used in industries requiring high strength and excellent corrosion resistance. In the marine and offshore sectors, they are ideal for shipbuilding, subsea pipelines, and oil and gas platforms, withstanding harsh chloride-rich environments. In chemical and petrochemical industries, they are used for reactors, storage tanks, and heat exchangers due to their resistance to aggressive chemicals. Additionally, they are employed in desalination plants, power generation, and pulp and paper industries, offering durability and reliability in demanding and high-pressure applications.
