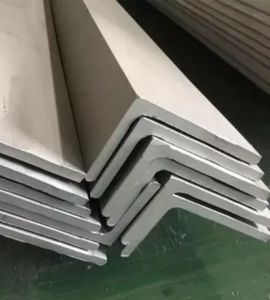

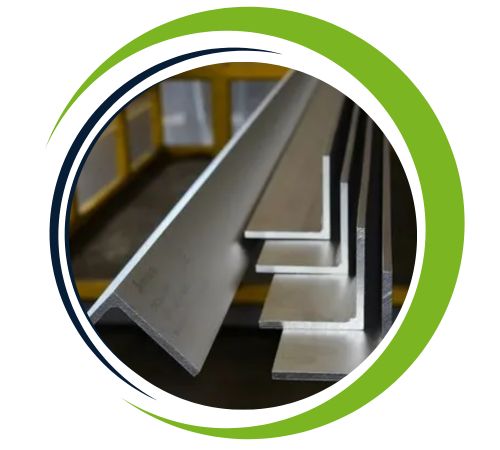

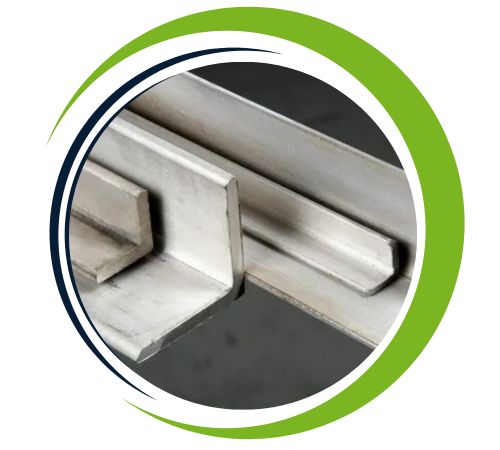

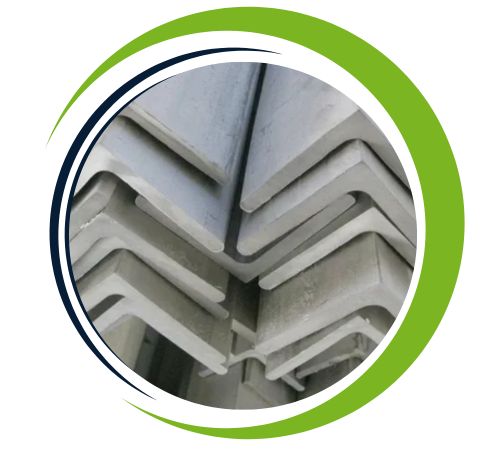

Super Duplex Steel S32760 Angles are robust structural components crafted for industries that demand top-notch durability, toughness, and resistance to corrosion. With a unique dual-phase microstructure made up of austenite and ferrite, these angles excel at resisting pitting, crevice corrosion, and stress corrosion cracking caused by chlorides. This makes them perfect for use in offshore, marine, chemical, and petrochemical settings. Built to comply with international standards, Super Duplex Steel S32760 Angles guarantee dimensional stability, long-lasting reliability, and exceptional mechanical performance even in the harshest environments.
Typically, the composition of Super Duplex Steel S32760 Angles includes chromium (24–26%), nickel (6–8%), molybdenum (4–5%), along with nitrogen and manganese. This meticulously designed alloy boasts a tensile strength of around 830 MPa, with a yield strength that’s nearly double that of standard stainless steels, plus impressive impact toughness. The dual-phase microstructure also provides excellent hardness, weldability, and formability, all while keeping its structural integrity intact in both freezing and high-temperature conditions.
Specifications : ASTM A790 / ASME SA790
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex S32760 | 1.4410 | S32760 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Wiraphan Sheets and Plates based in Bangkok, Thailand, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
You’ll find Super Duplex Steel S32760 Angles widely used in offshore platforms, desalination plants, chemical processing facilities, marine engineering, and power generation sectors. They’re perfect for structural frameworks, pipe supports, load-bearing components, and other heavy-duty applications that face exposure to seawater or highly corrosive environments. Thanks to their outstanding corrosion resistance, high strength, and low maintenance needs, Super Duplex Steel S32760 Angles offer a dependable, long-lasting, and cost-effective solution for industries working in extreme and aggressive conditions.
Yes, we offer custom sizes for Super Duplex Steel S32760 Angle to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.
Super Duplex Steel S32760 Angle is widely used in industries requiring exceptional corrosion resistance and high strength. Common applications include offshore oil and gas platforms, marine environments, and chemical processing plants, where exposure to aggressive media is prevalent. It is also utilized in heat exchangers, pressure vessels, and storage tanks, as well as in seawater desalination plants. Its resistance to pitting, crevice corrosion, and stress corrosion cracking makes it ideal for applications in harsh environments, ensuring long-term durability and reliability in critical structural components.
