Wiraphan Sheets and Plates, based in Bangkok, Thailand, is a reputable manufacturer and supplier of top-notch stainless steel products, including Stainless Steel 17-7 PH Sheets and Plates. With a strong focus on technical expertise and a commitment to quality, Wiraphan provides high-performance materials that are perfect for demanding industrial applications. Their 17-7 PH sheets and plates boast a remarkable blend of high strength, excellent fatigue resistance, and moderate corrosion resistance. Crafted using advanced processing techniques and premium raw materials, Wiraphan guarantees that these products meet international standards, making them ideal for aerospace, chemical, and structural applications.
Stainless Steel 17-7 PH Sheets and Plates are a type of precipitation-hardening stainless steel, primarily made up of about 17% Chromium and 7% Nickel, with some Aluminum added to enhance hardening. This alloy delivers impressive tensile strength, typically ranging from 960 to 1,100 MPa, along with outstanding spring-like properties after heat treatment. It maintains solid mechanical performance across a wide temperature range. Additionally, 17-7 PH shows moderate corrosion resistance, making it suitable for both atmospheric and mild chemical environments. Its excellent formability and stability during thermal processing further enhance its versatility.
| Specifications : | ASTM A693 / ASME SA693 |
| Standard : | ASTM, ASME and API |
| Thickness : | 4.0mm – 100mm |
| Shims Thickness : | Range from .01″ to .0125″ |
| Specialize : | Shim Sheet, Perforated Sheet, B. Q. Profile. |

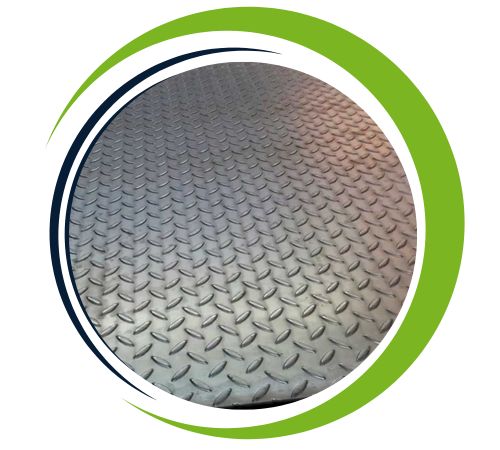

| Form : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |

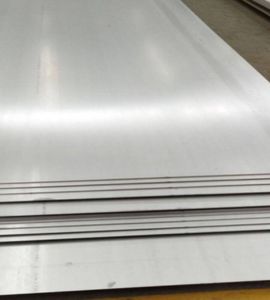

| Finish : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade : | SS 17-7 PH, (UNS S17700) |
| Grade | C | Mn | Ni | Al | Cr | P | Si | S | Fe | |
| 17-7 PH | min. | – | – | 6.50 | 0.75 | 16 | – | – | – | – |
| max. | 0.09 | 1.0 | 7.75 | 1.50 | 18 | 0.040 | 1.0 | 0.030 | Balance | |
| Properties | Metric | Imperial |
| Tensile strength | 1170 MPa | 170000 psi |
| Yield strength | 965 MPa | 140000 psi |
| Modulus of elasticity | 204 GPa | 29600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 6% | 6% |
| Hardness, Rockwell C | 38 | 38 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SS DIN 1.4568 Sheets and Plates offer numerous advantages, including exceptional strength, high fatigue resistance, and excellent stress-corrosion cracking resistance. This alloy maintains good mechanical properties at elevated temperatures, making it ideal for aerospace and industrial applications. It also provides excellent formability and can be easily hardened through heat treatment. The material exhibits superior weldability, ensuring reliable performance in critical environments. Its corrosion resistance, combined with high durability, makes it a preferred choice for manufacturing components that require both strength and resistance to harsh conditions.
| Properties | Metric | Imperial |
| Density | 7.80 g/cm3 | 0.282 lb/in3 |
Yes, we offer custom sizes for Stainless Steel 17-7 PH Sheet and Plates to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 17-7 PH | 1.4568 | S17700 | SUS 631 | Z8CNA17.07 | 301S81 | – | X7CrNiAl 17 7 |
| Material | Size | Thickness |
|---|---|---|
| PLATES / SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
These Stainless Steel 17-7 PH Sheets and Plates are perfect for applications that demand high strength, controlled hardness, and good corrosion resistance. You’ll often find them in aerospace components, springs, diaphragms, washers, and other formed parts where high performance and reliability are crucial. The alloy’s ability to retain its properties after heat treatment makes it a great choice for structural and mechanical applications. Plus, 17-7 PH is widely used in chemical processing, medical equipment, and precision instruments, where dimensional stability and mechanical strength are vital in both high- and low-temperature settings.
