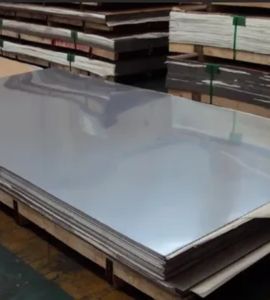

Wiraphan Sheets and Plates, a well-respected manufacturer and supplier based in Bangkok, Thailand, specializes in providing top-notch Stainless Steel 317L Sheets and Plates to a diverse array of industries. Renowned for their precision, durability, and commitment to international quality standards, the company guarantees that each product meets rigorous industrial specifications. Stainless Steel 317L Sheets and Plates are prized for their outstanding resistance to corrosion, particularly against chemical attacks, and their exceptional mechanical performance in challenging environments. With cutting-edge manufacturing technology and a team of skilled professionals, Wiraphan offers dependable and long-lasting stainless steel solutions for sectors like chemical, petrochemical, marine, food processing, and construction.
Stainless Steel 317L Sheet and Plate is an austenitic stainless steel primarily made up of iron, chromium (18–20%), nickel (11–15%), and molybdenum (3–4%), featuring a very low carbon content (≤0.03%). Its mechanical properties boast high tensile and yield strength, remarkable ductility, excellent resistance to corrosion and pitting, and good toughness at both room and elevated temperatures. The low carbon content helps prevent carbide precipitation during welding, ensuring long-lasting durability in highly corrosive settings.
| 317L Sheets & Plates Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| 317L Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| SS 317L Sheets & Plates Size Range | Cold rolled ASME SA240 Grade 317L Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 317L Stainless Steel Sheet 3.0–10.0 mm |
| 317L SS Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS 317L Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS 317L Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel 317L Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel 317L Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 317L SS Strips EN 10088 SA -240-304 / 317L Strips |
| Finish of SS 317L Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |

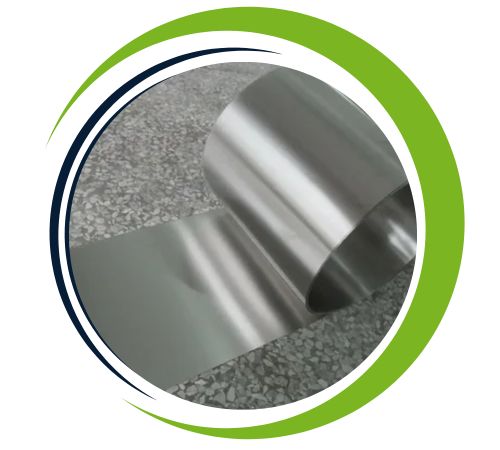

| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
| 2000MM X 1000MM X 3MM | 2000MM X 1000MM X 6MM |
| 2500MM X 1250MM X 4MM | 2500MM X 1250MM X 8MM |
| 3000MM X 1500MM X 3MM | 3000MM X 1500MM X 6MM |
| 3000MM X 1500MM X 4MM | 3000MM X 1500MM X 8MM |
| 2000MM X 1000MM X 5MM | 2500MM X 1250MM X 10MM |
| 2500MM X 1250MM X 3MM | 2500MM X 1250MM X 6MM |
| 4000MM X 2000MM X 3MM | 4000MM X 2000MM X 6MM |
| 2500MM X 1250MM X 5MM | 3000MM X 1500MM X 10MM |
| 2000MM X 1000MM X 4MM | 2000MM X 1000MM X 8MM |
| 4000MM X 2000MM X 4MM | 2000MM X 2000MM X 10MM |
| 3000MM X 1500MM X 5MM |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 317L Sheets and Plates find extensive use in industries that demand exceptional resistance to harsh chemicals and high temperatures. Typical applications include equipment for chemical processing, machinery in pharmaceuticals, marine components, heat exchangers, storage tanks, and piping systems. They are also utilized in food processing, petrochemical facilities, and architectural projects that face tough environmental conditions. The blend of corrosion resistance, strength, and durability makes Stainless Steel 317L Sheets and Plates a top choice for critical engineering, industrial, and construction needs.
Stainless steel 317L sheets and plates are widely used in applications requiring excellent corrosion resistance and strength. Typical applications include solvents, heat exchangers, and processors, especially in high-chloride environments. It is used in pharmaceutical and food processing, marine environment and pollution control devices. Their pitting and crevice corrosion resistance makes them ideal for power plants, desalination plants and petrochemical plants. Moreover, they are used in tanks, tubes and piping systems where durability and resistance to environmental hazards are required.
