Wiraphan Sheets and Plates, a top-notch manufacturer and supplier based in Bangkok, Thailand, has made a name for itself by delivering high-quality Stainless Steel 316L Sheets and Plates to industries around the globe. With a strong focus on precision, durability, and adherence to international standards, the company guarantees that each product meets rigorous quality benchmarks. Stainless Steel 316L Sheets and Plates are prized for their outstanding corrosion resistance, toughness, and formability, making them perfect for demanding industrial settings. By utilizing cutting-edge manufacturing facilities and a team of skilled professionals, Wiraphan provides dependable stainless steel solutions for a variety of sectors, including chemical, marine, food processing, pharmaceuticals, and construction.
Stainless Steel 316L Sheet and Plate is an austenitic stainless steel primarily made up of iron, chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), with a very low carbon content (≤0.03%). Its mechanical properties boast high tensile and yield strength, exceptional corrosion and pitting resistance, excellent ductility, and good toughness at both room and elevated temperatures. The low carbon content not only enhances weldability but also prevents carbide precipitation, making it ideal for applications that require long-term exposure to corrosive environments.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

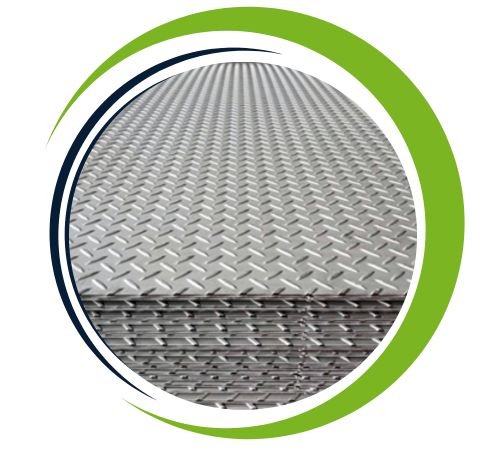

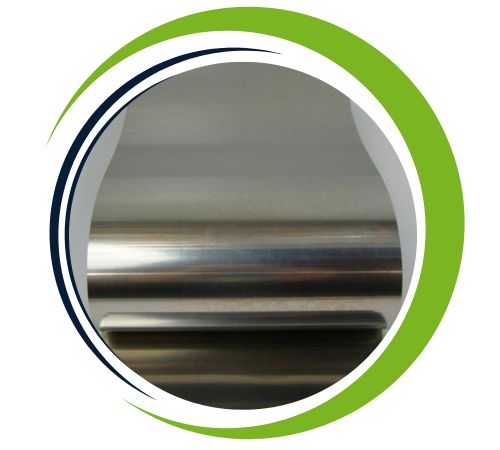

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 316L Sheets and Plates find extensive use in industries that demand remarkable resistance to corrosion and durability in tough conditions. Typical applications include chemical processing equipment, marine and offshore components, machinery for pharmaceuticals and food processing, heat exchangers, and architectural structures. They are also utilized in pipelines, storage tanks, and medical instruments where hygiene, corrosion resistance, and long-lasting performance are essential. The blend of strength, formability, and resistance to chemical and environmental challenges makes Stainless Steel 316L Sheets and Plates a go-to choice for rigorous engineering and industrial projects.
Stainless steel 316L sheets and plates are widely used in applications requiring high corrosion resistance and strength. Because of their resistance to chloride corrosion, they are commonly found in marine environments, chemical plants, and pharmaceutical equipment. Other applications include food processing equipment, medical devices, heat exchangers and nuclear reactors. 316L is also used for building materials, as well as pipes, valves and fittings. Its excellent welding capabilities make it ideal for manufacturing and custom designs in harsh environments.
