Stainless Steel 301 Sheet and Plates

Located in Bangkok, Thailand, Wiraphan Sheets and Plates is a well-respected manufacturer and supplier of stainless steel products, offering a wide variety of high-quality options. Among their popular offerings is the **Stainless Steel 301 Sheet and Plates**, celebrated for its impressive strength, solid corrosion resistance, and outstanding formability. Wiraphan provides these 301 sheets and plates in different thicknesses and finishes, catering to industries like automotive, aerospace, and industrial manufacturing. With a strong commitment to quality, precision, and customer satisfaction, Wiraphan guarantees a reliable supply and customized solutions for all Stainless Steel 301 Sheet and Plate needs.

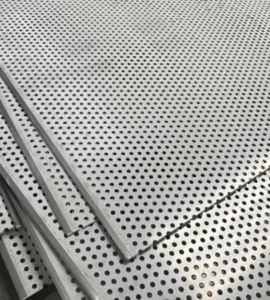

SS 301 Perforated Sheets

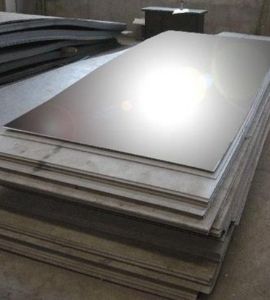

Stainless Steel 301 Hot Rolled Sheets

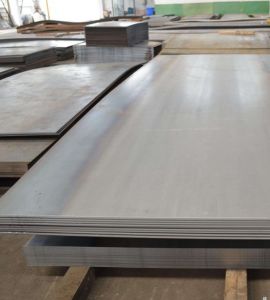

Stainless Steel 301 Cold Rolled Sheets

ASTM A240 Stainless Steel 301 Sheets Dealer in Pattaya, SS 301 Plates Supplier in Pattaya, Stainless Steel S30100 Sheets and Plates in Rayong, Stainless Steel 1.4310 Sheets and Plates Size Chart, 301 SS Sheets and Plates Price in Nonthaburi, ASME SA240 SS 301 Plates Supplier in Thailand, 301 Stainless Steel Sheets in Chiang Mai, Stainless Steel 301 Sheet and Plate Supplier in Thailand

Stainless Steel 301 is an austenitic chromium-nickel stainless steel that boasts higher strength thanks to its work-hardening capabilities. Its typical makeup includes Chromium (16.0–18.0%), Nickel (6.0–8.0%), Carbon (≤0.15%), Manganese (≤2.0%), Silicon (≤1.0%), along with trace amounts of Phosphorus and Sulfur. In terms of mechanical properties, it offers a tensile strength of up to 620 MPa, a yield strength of 275 MPa, and an elongation of 40% when in an annealed state. When cold rolled, it can reach even greater strength levels, making it ideal for structural components that need to be durable while still resisting corrosion in mildly corrosive environments.

Stainless Steel 301 Sheet and Plates Specification

Grades	Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L , 309, 309S, 310, 310S, 316, 316L, 316TI, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L
Thickness	0.3mm – 100mm
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface	2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Type of Material	STAINLESS STEEL SOFT, DEEP DRAW, EXTRA DEEP DRAW, QUARTER HARD, HALF HARD, FULL HARD.
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA.
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Sheets & Plates, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

SS 301 Sheets and Plates Chemical Composition

Element	Percent by Weight
Element	Type 301 ANN
Carbon	0.150 maximum
Manganese	2.000 maximum
Phosphorus	0.045 maximum
Sulfur	0.030 maximum
Silicon	1.00 maximum
Chromium	16.00 – 18.00
Nickel	6.000 – 8.000
Nitrogen	0.10 maximum

SS 301 Sheets and Plates Mechanical Properties

Properties	Metric	Imperial
Tensile strength	515 MPa	74694 psi
Yield strength	275 MPa	39900 psi
Elastic modulus	207 GPa	30000 ksi
Poisson’s ratio	0.27-0.30	0.27-0.30
Elongation at break	40%	40%

Equivalent Grades of A240 Stainless Steel 301 Sheets and Plates

STANDARD	WERKSTOFF NR.	UNS	JIS	AFNOR	BS	GOST	EN
SS 301	1.4310	S30100	SUS 301	–	–	–	–

301 Stainless Steel Hot Rolled Sheets Price in Nonthaburi, Stainless Steel 301 Shim Sheets Weight Chart, SS 301 Perforated Sheets Supplier in Thailand, Stockist of SUS 301 Sheets and Plates in Chiang Mai, 301 SS Cold Rolled Sheets Supplier in Thailand, 301 SS Cold Drawn Plates Price List in Bangkok, SS 301 Chequered Plates Supplier in Chiang Mai, Stainless Steel 301 Chequered Plates Exporter in Pattaya, DIN 1.4310 Stainless Steel Plates Exporter in Thailand, Stainless Steel Sheet 301 2b Finish Exporter in Rayong

301 Stainless Steel Sheet Physical Properties

Physical Property		Value
Density		0.2850 lb/in³ (7.88g/cm³)
Melting Range		2250-2950°F (1399-1421°C)
Specific Gravity		8.03
Modulus of Elasticity in Tension		28•106 psi (193 GPa)*

Temperature Range		Mean Coefficient of Thermal Expansion
°C	°F	cm/cm°C	in/in/°F
20-100	68-212	16.6·10-6	9.2·10-6
20-300	68-572	17.6·10-6	9.8·10-6
20-500	68-932	18.6·10-6	10.3·10-6
20-700	68-1292	19.5·10-6	10.8·10-6
20-871	68-1600	19.8·10-6	11.0·10-6

SS 301 Sheet and Plate Dimensions

Material	Size	Thickness
PLATES & SHEETS	1000 mm x 2000 mm	0.1mm To 100 mm Thickness
	1220 mm x 2440 mm (4′ x 8′)
	1250 mm x 2500 mm
	1500 mm x 3000 mm
	2000 mm x 4000 mm
	2000 mm x 2000 mm

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Stainless Steel 301 Sheet and Plates Manufacturer and Exporter in Bangkok, Thailand

Wiraphan Sheets and Plates based in Bangkok, Thailand, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

UNS S30100 Stainless Steel Sheets Distributor in Thailand, SS 301 Plates Supplier in Bangkok, Stainless Steel 301 Sheets Weight Chart, 301 Stainless Steel Hot Rolled Sheets Exporter in Chiang Mai, Stainless Steel 301 Shim Sheets Manufacturer in Pattaya, SS 301 Chequered Plates Price List in Thailand, 301 Stainless Steel Sheets Sizes in mm, Stainless Steel Sheet 301 2b Finish Distributor in Rayong, Stainless Steel 301 Sheets and Plates Exporter in Nonthaburi

Stainless steel 301 sheets and plates have many advantages, including exceptional corrosion resistance, making them ideal for harsh environments Their high strength and extremely durable work performance endure heavy mechanical stresses and remain stable. This makes them suitable for use in a variety of industries, including aviation, automotive, and construction. The excellent weldability and ease of fabrication of the alloy provide its versatility for various applications. Additionally, stainless steel 301 is highly resistant to oxidation and can maintain its strength at elevated temperatures, providing long-term and reliable service.

Types of Stainless Steel 301 Sheet and Plates

BA Finish Stainless Steel 301 Plates in Pattaya, UNS S30100 SS Sheets Rayong, , SUS 301 Sheets and Plates Supplier in Bangkok, 301 SS Perforated Sheets Exporter in Chiang Mai, DIN 1.4310 SS Perforated Sheets Price List in Thailand, SS 301 Sheets Distributor in Rayong, ASME SA 240 Stainless Steel 301 Sheets Supplier in Pattaya, 301 SS Sheet and Plate Distributor in Thailand, Stainless Steel 301 Shim Sheets Sizes in mm

Are Custom Sizes Available for Stainless Steel 301 Sheet and Plates?

Yes, we offer custom sizes for Stainless Steel 301 Sheet and Plates to meet specific project needs. Our team at Wiraphan Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@wiraphansheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Stainless Steel 301 Sheet and Plates

Stainless Steel 301 Sheet and Plates find their way into various applications where high strength and good corrosion resistance are crucial. You’ll often see them in automotive parts, railway cars, trailer bodies, aircraft structural components, and architectural trims. Thanks to its ease of forming and welding, 301 is also a go-to choice for appliances, springs, and industrial equipment. It shines particularly in settings that experience mechanical stress, vibration, or repeated load-bearing, thanks to its excellent fatigue resistance.
